Electric vehicle

Using the Electric vehicle menu (EV only)

You can use various EV-specific functions, such as energy information views and vehicle charge scheduling.
On the Home screen, press EV.

Electric vehicle screen

The Electric vehicle screen provides the following features and information:
  1. View the current battery level.
  • If you press the vehicle image, the Charging limit screen appears.
  1. View the distance to empty for the current climate control settings.
  • The details of drivable range displayed on the map screen may not match the actual information.
  1. Displays the list of menus.
  1. Edit EV Home widgets: Edit items that can be controlled from the Electric vehicle screen.
  • To reset the control items on the Electric vehicle screen and their positions, press Reset.
  1. Online manual: View the online manual by scanning the QR code with your mobile phone.

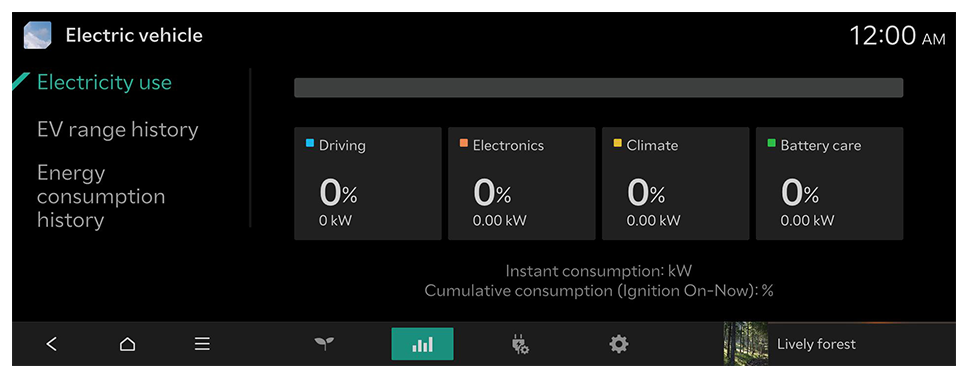

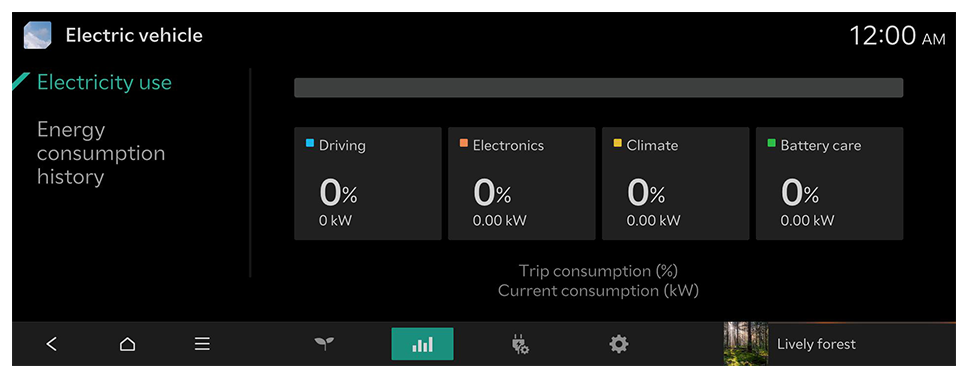

Viewing the energy information screen

Check the vehicle′s electricity usage and EV economy history.

Electricity use

You can view the power consumed by the drivetrain, climate control, electrical systems and battery care function.

Energy consumption history

You can view a graph of fuel efficiencies on individual dates.

Setting for charging

You can configure various functions such as automatic battery charging or climate control according to the specified departure time.

Next departure time

Set the cabin temperature for the next departure time.

AC charging settings

You can schedule charging and set the charge current, depending on the installed charger type.
  • Charging time varies based on charging conditions.
  • If a problem occurs during charging, lower the charging current and try again. If you lower the charging current, it may take longer to charge the battery.

Charging limit

Set the maximum % charge level for the vehicle's high voltage battery.

Electricity use settings (V2L)

Setting of the minimum battery charge % level at which V2L will stop.
  • V2L is an abbreviation of Vehicle To Load.

Configuring the Electric vehicle settings

You can set convenience features available for electric vehicles.
  • Available settings may differ depending on the vehicle model and specifications.

Battery conditioning

Controls the battery temperature to enhance fast charging performance.

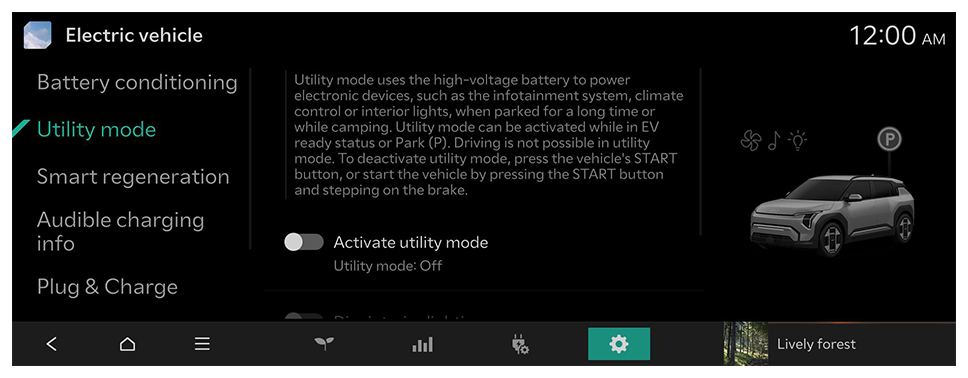

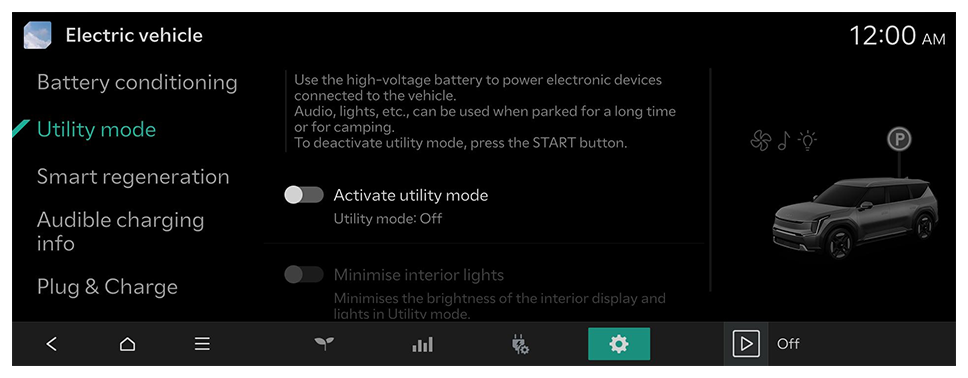

Utility mode

Utility mode uses the high-voltage battery to power electronic devices, such as the infotainment system, climate control or interior lights, when parked for a long time or while camping. Utility mode can be activated while in EV ready status or Park (P). Driving is not possible in utility mode.
  • To deactivate utility mode, press the vehicle's START button, or start the vehicle by pressing the START button and stepping on the brake.

Smart regeneration

Automatic adjustment of the braking intensity when recuperation is set to [Auto]. These adjustments are made while the vehicle is coasting, and are based on the detected driving speed, distance to the leading vehicle, and road slope.

Audible charging info

Audible information about the charging status when the vehicle starts charging.
  • To turn off the Audible charging info, press Off.

i-PEDAL (if equipped)

Accelerate, decelerate and stop using only the accelerator pedal. Use the brake pedal when necessary.
※ Pull and hold the left shift paddle to enable or disable i-Pedal.
