Precautions for Safe driving
Please observe and comply with local traffic rules and regulations.
-
For your safety, some functions cannot be operated while driving. Functions that cannot be operated on will be disabled.
-
The route guidance is a reference and it will take you to the vicinity of your destination. The highlighted route is not always the shortest distance, the least congested, and in some cases might not be the fastest route.
-
Road, name and POI information may not always be completely updated. Some places may not include up to date information.
-
The car location mark does not always indicate your exact location. This functions uses GPS information, various sensors, and road map data to display the current location. However, errors in displaying your location may occur if the satellite is transmitting inaccurate signals or two or less satellite signals are being received. Errors that occur in such conditions cannot be corrected.
-
The location of the vehicle within the navigation may differ from your actual location depending on various reasons, including the satellite transmission state, vehicle state (driving location and conditions), etc. Additionally, the car location mark may differ from the actual location if the map data is different from the actual road landscape, such as changes due to the construction of new roads. If such differences occur, driving for a short period of time will automatically correct the location of the vehicle through map matching or GPS information.
The GNSS (Global Navigation Satellite System) is a satellite-based navigation system made up of a network of 24 satellites placed into orbit by the U.S. Department of Defense.
GPS was originally intended for military applications, but in the 1980s, the government made the system available for civilian use.
GPS works in any weather conditions, anywhere in the world, 24 hours a day.
There are no subscription fees or setup charges to use GPS.
Your unit must receive satellite signals to operate. If you are indoors, near tall buildings or trees, or in a parking garage, the navigation cannot receive satellite signal.
Before the navigation checks your current location and finds a route, you must do the following steps:
-
Go outside to an area free from tall obstructions.
-
Turn on the navigation. Receiving satellite signals can take a few minutes.

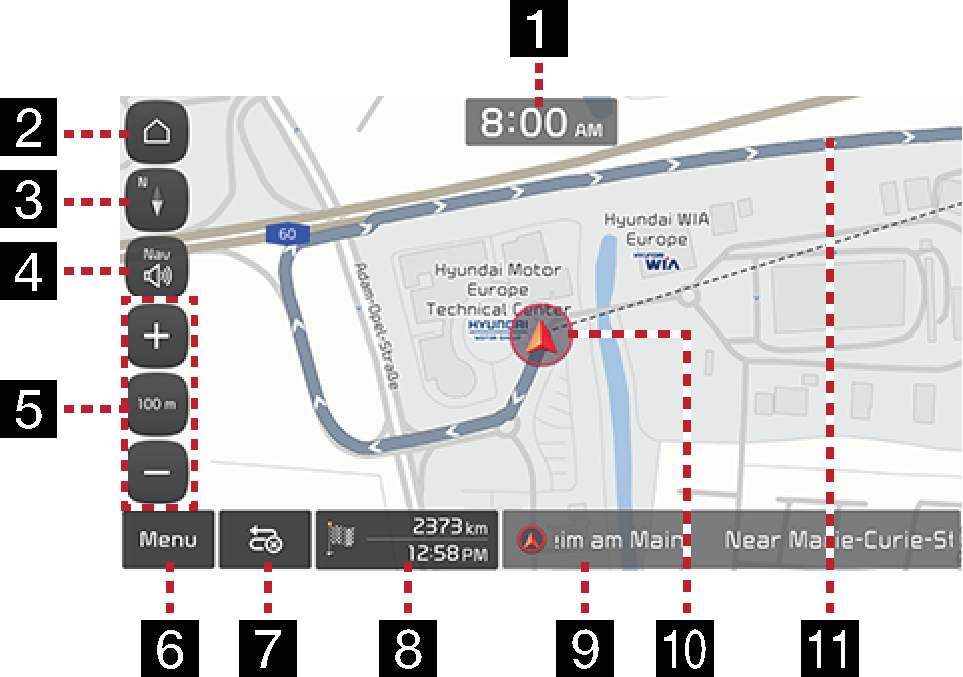

Operating Navigation Screen
-
Clock display
Displays current time.
-
Home button
Moves to the home menu screen.
-
Map view button
Changes the map view perspective. Press [
], [
] or [
].-
(2D heading
up): The map always displays the vehicle’s direction as proceeding towards
the top of the screen.
-
(2D north
up): The map always points north, regardless of the direction that the
vehicle is moving.
-
(3D heading
up): The map always displays the basic outline and details of the surrounding
roads and general area.
-
-
Navigation volume button
Adjusts the navigation volume. For more details, refer to the “Navigation volume” part.
-
Map scale button
Displays the current map scale.
-
Press the auto scale button on to adjust the map scale automatically depending on the speed.
-
Press the auto scale button again to adjust the map scale manually.
-
Press [
] or [
] to adjust the map scale.
-
-
Menu button
The quick menu is displayed. For more details, refer to the “Quick menu” part.
-
Cancel route button
Cancels the route guidance.
Resume guidance button
Resumes the route guidance when the set guidance is stopped.
-
Estimated arrival time and remaining time
Displays the remaining time, and the estimated time to arrive at the destination.
-
Remaining distance display
Displays the remaining distance to the destination. Press to check the destination information.
-
Route guidance line
Displays the route guidance to the destination when a route is set.
-
Current location and destination display
Displays current location and destination.
-
Vehicle location mark
Displays current vehicle location and direction.
-
Pinch in/out to set the zoom level on the map screen.
-
Turn the controller left/right to set the zoom level on the map screen. (If equipped)

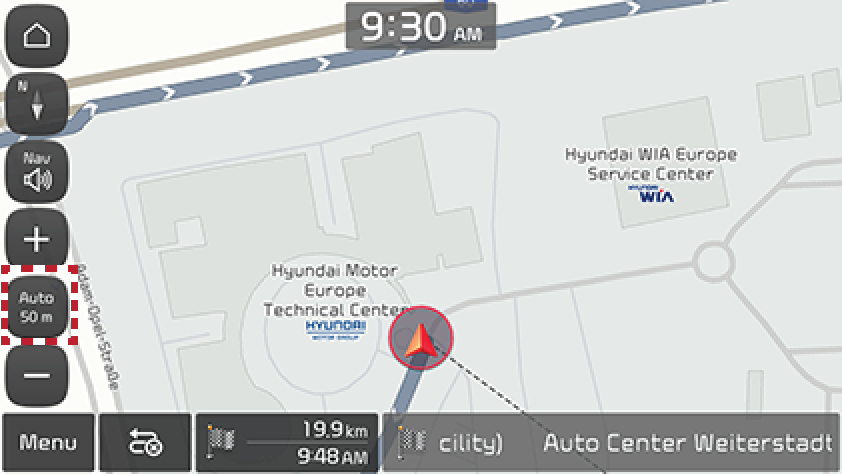

You can switch the map scale mode to scale fixed mode or auto scale mode.
Press [
]/[
] on the
map screen.
|
Name |
Description |
|
Scale Fix [ |
Fixes the displayed scale. |
|
Auto Scale [ |
Map scale is set automatically according to the speed, road class and guidance distance. |

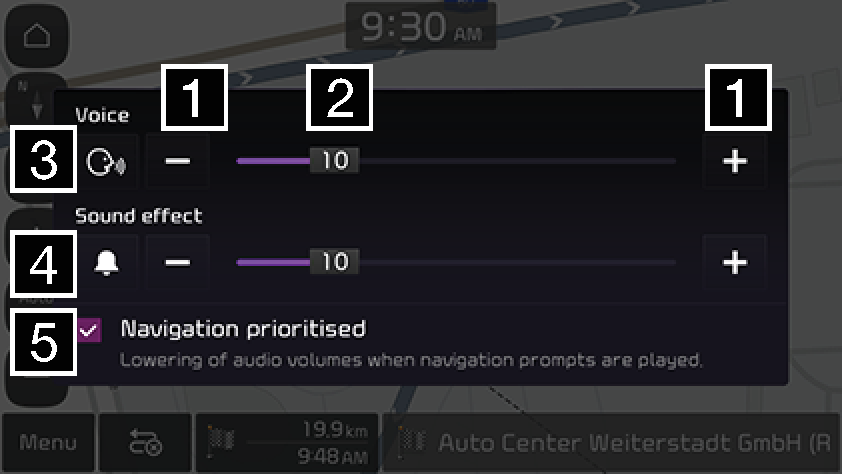

Press
[
] or [
] to adjust
the volume.
-
[
] [
]Press the button to mute or unmute voice guidance.
-
[
] [
]Press the button to mute or unmute sound effect.
-
[
] [
]Press the buttons to adjust the volume.
-
[
]Drag the volume control bar to adjust the volume.
-
Navigation prioritised
If checked, lowers all other audio volumes during playback of navigation prompts.
Press and hold the point on the map and move it to the desired direction and release it when the desired point is focused. The selected point will be centred on the screen and the scroll mark will be displayed. Information about the marked point and straight line distance from the current location will be displayed at the centre of the screen.
If a map area on the map screen is pressed, the map will continuously scroll in the corresponding direction until it is released.

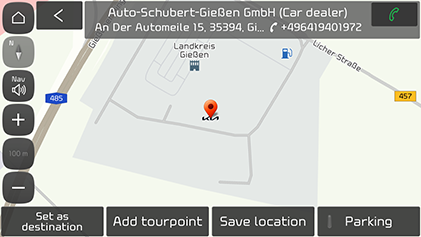

After searching for a POI, the POI phone number information can be used to make a call to the POI facility.
-
Find the desired POI using various searching methods such as the map scroll function, the POI category, previous destination or saved places.
-
Press [
] on the
map screen. -
Bluetooth phone is used to make call.
-
Making a call is not possible if there is no telephone information for a POI or if there is no mobile phone connected through Bluetooth.
-
For more information on mobile phone authentication through Bluetooth or detailed information on conducting the search, refer to the “Pairing and connecting the unit and a Bluetooth phone” part.

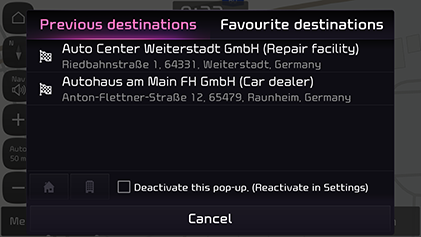

When starting the navigation, the Previous destinations pop-up appears for about 10 seconds. The pop-up is displayed only when the navigation is started without the route planned.
You can select one from the list.
Press SETUP > Navigation > Guidance > Previous destinations settings > Show previous destinations on start to set the Previous destinations.
Quick menu
You can see the quick menu to move to the navigation menu quickly. Some items in the images may differ from the actual screen, according to the model, option and country.
-
Press Menu on the map screen.
-
Press the desired option.
-
Menu: Shows or hides the quick menu.
-
Route: Recalculates the route or sets the route options.
-
Nearby info: Set the POI items to display on the map or find a facility by searching for POI near current location.
-
Save: Adds the current location to saved places.
-
Traffic info: Set whether to display traffic flow.
-
Display Off: Turns off the display. Touch the screen to turn on again.
-
