Standard-class Gen5W Navigation
General

Basic operation

System ON/OFF

Starting the system for the first time

  1. Press the Engine Start button or set the ignition key to ON or ACC ON. Once the system is turned on, the booting process will start and the safety warning page is displayed.

  2. Press Confirm. If you want to change the system language, press Language.

  • You cannot operate the system while it is booting up. It may take some time for all of the features to be ready.

  • The safety warning page is displayed every time the ignition is turned on. The displayed warnings are related to safety, please closely read and comply with the safety warnings.

  • If there is no operation for 10 seconds on the safety warning screen, the system automatically switches to the last played mode.

  • Press Confirm after selecting a driver or Guest. For more details, refer to the "Profile (If equipped)" part.

Turning the system on

Press a (POWER PUSH or PWR) on the head unit in system OFF status.

Pay attention to the volume setting when turning the system on. A sudden output of extreme volume upon turning the system on could lead to hearing impairment. Adjust the volume to a suitable level before turning off the system or set the startup volume in the Sound settings menu.

Turning the system off

Press and hold a (POWER PUSH or PWR) on the head unit in system ON status.

Radio/Media OFF

Press a (POWER PUSH or PWR) on the head unit to turn the radio/media off in power ON status.

Radio/Media ON

Press a (POWER PUSH or PWR) on the head unit to turn the radio/media on in radio/media off status.

Adjusting the volume

Turn the volume control knob VOL on the head unit to the left/right.

Mode

Description

Radio or media

During the radio or media play, turn to the left/right.

Bluetooth call

During a Bluetooth call, turn to the left/right.

Bluetooth bell

During an incoming call, turn to the left/right.

When you turn the system off, the current volume level is automatically memorised. Whenever you turn the system on, it operates at the memorised volume level if you do not set the startup volume in the Sound settings menu.

Resetting the system

Head unit functions may vary for each model. For more details, refer to the supplied simple manual.

This feature is used to reset the system in the occurrence of an unforeseen error or problem. Press the “RESET” button. (The use of a clip or pin is recommended when resetting the system.)

How to Use Touch Screen

Press the desired menu on the screen to select a menu.

  • If you touch the screen while driving, the attention may be scattered and cause a traffic accident. For safety, please use after stopping.

  • Do not let any electrically conductive material contact the touch screen, and do not place any objects that generate electromagnetic waves, such as wireless chargers or electronic devices, near the touch screen. The system may work incorrectly due to electromagnetic effects, which may cause the touch screen to malfunction.

Configuration for home screen

The detailed menu in each layout can be adjusted by the user. The items that can be set may vary according to model and specifications.

Configuration for home screen (Type A)

<Type A>

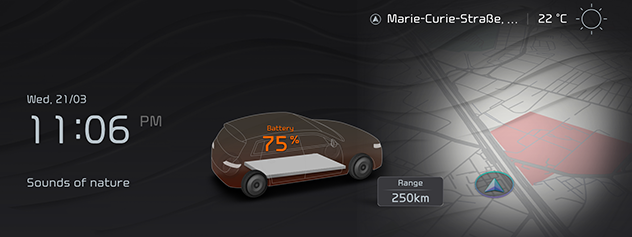

Configuration for home screen (Type B ECO)

<Type B ECO>

Configuration for home screen (Type A)

The detailed menu in each layout can be adjusted by the user.

The items that can be set may vary according to model and specifications.

  1. Clock

    Displays date and time.

  2. Radio/Media information

    Displays radio/media information.

  3. Navigation view

    Provides a brief view of the navigation map and the route screen.

  4. Weather and temperature

    Displays the current weather and temperature.

  5. User profile (If equipped)

    Press go to Profile settings to change user.

  6. HOME

    Moves to the first page of the home screen.

  7. Menu

    • Press Display Off to turn the screen off.

    • Press Edit Home icons to edit home icons.

    • Press Manual to go to QR code for web manual.

  8. All menus

    Scroll the home screen sideways to move to all the items of the system menu.

    • EV (EV vehicle only): Moves to the EV (Electric Vehicle) menu.

    • Kia Connect (If equipped): Moves to the Kia Connect menu.

    • Kia LIVE: Moves to the Kia LIVE menu.

    • Phone projection (If equipped): Runs Android Auto or Apple CarPlay (If equipped) function.

    • Radio: Converts to the last played radio mode.

    • Sound mood lamp (If equipped): Moves to the Sound mood lamp menu.

    • Phone: Operates Bluetooth hands-free function.

    • Media: Converts to the last played media mode.

    • Map: Displays the map screen of the current position.

    • Navigation: Moves to the Navigation menu.

    • Settings: Moves to the Settings menu.

    • Voice memo: Moves to the Voice memo menu.

    • PHEV (PHEV vehicle only): Moves to the PHEV (Plug-in Hybrid Electric Vehicle) menu.

    • Hybrid (HEV vehicle only): Moves to the Hybrid (Hybrid Electric Vehicle) menu.

    • Manual: Moves to the QR code page to access the manual for features.

    • Passenger talk (If equipped): Converts to Passenger talk mode.

    • Quiet Mode (If equipped): Moves to Quiet Mode menu.

    • Climate (If equipped): Moves to Climate menu.

    • Valet mode (If equipped): Moves to Valet mode menu.

    • Notifications (If equipped): Moves to Notice menu.

    • Passenger view (If equipped): Runs Passenger view function.

    • Rear climate (If equipped): Moves to the Rear climate menu.

Basic operation of home screen

Some items in the images may differ from the actual screen, according to the model, option and country.

  1. Press [] on the screen.

  2. Select the desired menu on the home screen.

  3. Subsequent operations will be performed according to the desired menu selection.

Edit Home icons

  1. Press [] > Edit Home icons.

  2. Select the desired menu item from the list, then drag and drop it to the desired place.

  3. Press [] on the screen.

Press Default to reset all the home icons.

Split screen

This feature is used to set the item to be displayed on the right side of the screen by setting a checkmark on the menu drop-down.

  1. Press [] on the submenu screen.

  2. Press Split screen.

  3. You can select the desired item by dragging downwards or upwards on the split screen.

You can select the menu that you want to set up the split screen option in SETUP > Theme/Layout > Split screen.

Playing last media source

When you press the Engine Start button or set the ignition key to ON/ACC ON, the media source played the last time will play automatically. You can change this settings in SETUP > General > Media settings > Radio/Media Off at vehicle start-up.

Configuration for home screen (Type B ECO)

The detailed menu in each layout can be adjusted by the user.

The items that can be set may vary according to model and specifications.

  1. Clock

    Displays date and time.

  2. Radio/Media information

    Displays radio/media information.

  3. ECO

    Moves to the EV screen.

  4. Navigation view

    Provides a brief view of the navigation map and the route screen.

  5. Weather and temperature

    Displays the current weather and temperature.

  6. User profile (If equipped)

    Press go to Profile settings to change user.

  7. HOME

    Moves to the first page of the home screen.

  8. Menu

    • Press Display Off to turn the screen off.

    • Press Edit Home icons to edit home icons.

    • Press Manual to go to QR code for web manual.

  9. All menus

    Scroll the home screen sideways to move to all the items of the system menu.

    • EV (EV vehicle only): Moves to the EV (Electric Vehicle) menu.

    • Hybrid (Hybrid vehicle only): Moves to the Hybrid menu.

    • PHEV (PHEV vehicle only): Moves to the PHEV menu.

    • Kia Connect (If equipped): Moves to the Kia Connect menu.

    • Manual (If equipped): Moves to the Manual menu.

    • Sound mood lamp (If equipped): Moves to the Sound mood lamp menu.

    • Phone: Operates Bluetooth hands-free function.

    • Kia LIVE: Moves to the Kia LIVE menu.

    • Quiet Mode (If equipped): Moves to Quiet Mode menu.

    • Media: Converts to the last played media mode.

    • Voice memo: Moves to the Voice memo menu.

    • Radio: Converts to the last played radio mode.

    • Map: Displays the map screen of the current position.

    • Settings: Moves to the Settings menu.

    • Navigation: Moves to the Navigation menu.

    • Notifications (If equipped): Moves to the Notice menu.

    • Valet mode (If equipped): Moves to the Valet mode menu.

    • Phone projection (If equipped): Runs Phone projection function.

    • Passenger talk (If equipped): Runs Passenger talk function.

    • Climate (If equipped): Moves to the Climate menu.

    • Memory seat configurations (If equipped): Moves to the Memory seat configurations menu.

    • Rear climate (If equipped): Moves to the Rear climate menu.

Basic operation of home screen

Some items in the images may differ from the actual screen, according to the model, option and country.

  1. Press [] on the screen.

  2. Select the desired menu on the home screen.

  3. Subsequent operations will be performed according to the desired menu selection.

Edit Home icons

  1. Press [] > Edit Home icons.

  2. Select the desired menu item from the list, then drag and drop it to the desired place.

  3. Press [] on the screen.

Press Default to reset all the home icons.

Split screen

This feature is used to set the item to be displayed on the right side of the screen by setting a checkmark on the menu drop-down.

  1. Press [] on the submenu screen.

  2. Press Split screen.

  3. You can select the desired item by dragging downwards or upwards on the split screen.

  • You can select the menu that you want to set up the split screen option in SETUP > Theme/Layout > Split screen.

  • Press [] to search for EV charging stations.

Playing last media source

When you press the Engine Start button or set the ignition key to ON/ACC ON, the media source played the last time will play automatically. You can change this settings in SETUP > General > Media settings > Radio/Media Off at vehicle start-up.
