Basic controls

Turning the System on

The image of this product may be different from the actual product.

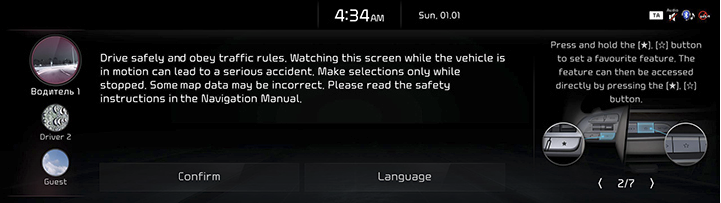

1. Press the engine start button. Once the system is turned on, the booting process will start and the safety warning page is displayed.

• Press [Language] to change the language of system display. For more details, refer to the "Language".
• Press [Driver 1], [Driver 2] or [Guest] to change the profile of system. For details, refer to "User profile settings".

2. Press [Confirm].

,Note

You cannot operate the system while it is booting up. It may take some time for all of features of the system boot up. The safety warning page is displayed every time the ACC is turned on. The displayed warnings are related to safety, please closely read and comply with the safety warnings.

Turning the System off

Press and hold the power button on the head unit to turn off the system.

Press the power button on the head unit to turn on the system.

,Note

Check the volume when turning on the system. Before turning on the system, adjust the volume to a reasonable level.

Resetting the system

This feature is used to reset the system in the occurrence of an unforeseen error or problem.

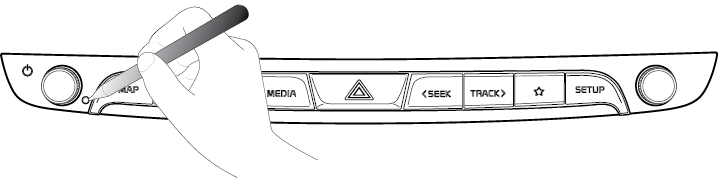

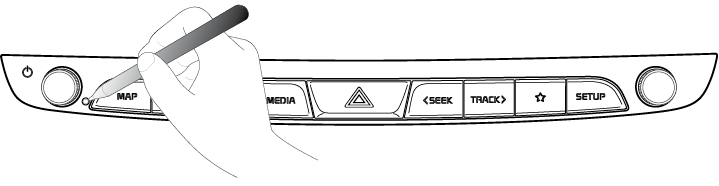

System reset is a feature to recover from the production malfunctions. Press [RESET] button. (A pin or clip is recommended to use to press "RESET" Button on the system.)

Type A

Type B

AV ON/OFF or volume adjustment

AV on/off

Press the power button on the head unit to turn the AV on/off.

Volume Control

Rotate the volume control knob on the head unit.

,Note

When you turn the unit off, the current volume level is automatically memorized. Whenever you turn the system on, it operates at the memorized volume level.

Using Controller and Touchpad

Controller	Description
	Rotate controller to left/right to switch the menu or adjust the map scale.
	Swipe up/down/left/right on touchpad to switch the menu. Pinches or expands the touchpad with two fingers to scale the map.
	Press touchpad to select the menu. Write the desired words or gesture on the touchpad.
	Push controller to up/down/left/right/diagonal directions to switch the menu.

Using the touch screen

Press the desired menu on the screen to select a menu.

,Note

If you use the touch screen while driving, your attention to driving may be distracted.

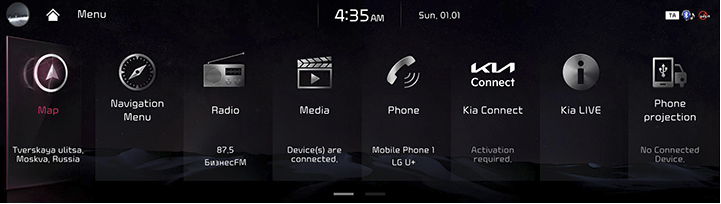

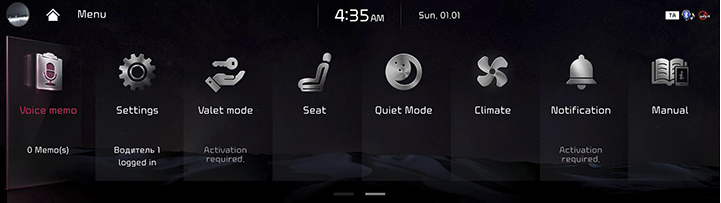

Basic controls of home screen

The images displayed on this system may differ from actual ones.

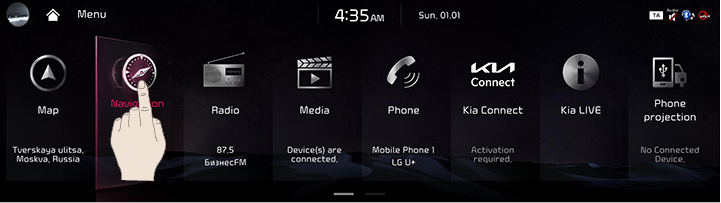

1. Press []. The home screen opens.

2. Select a desired menu on the home screen.
3. Follow-up controls are available for the selected menu.

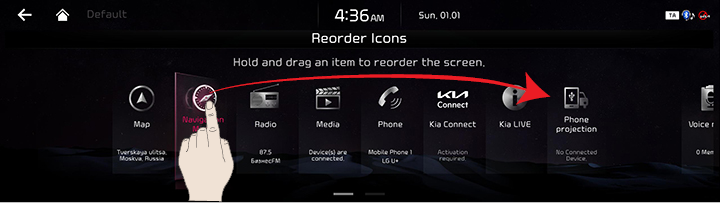

Editing home screen

Press and hold the menu icon on the home screen to change the location.

1. Press and hold the menu icon on the home screen.

2. Change the position.

3. Press [a].

,Note

Press [Default] to reset the home icon settings.
