Configuring the vehicle settings

Configure driving-related features and other vehicle settings.

Caution

Make sure you stop the vehicle before changing settings to ensure safety.

Vehicle settings can be changed only when the vehicle is turned on.
Available settings may differ depending on the vehicle model and specifications.
Some features may not be supported, depending on the climate control system.

On the Home screen, press Settings ▶ Vehicle.
The vehicle settings screen appears.
Configure the settings as required.

Press on the screen or press the [SEARCH] button on the control panel, enter a search term, and then select the item to run.

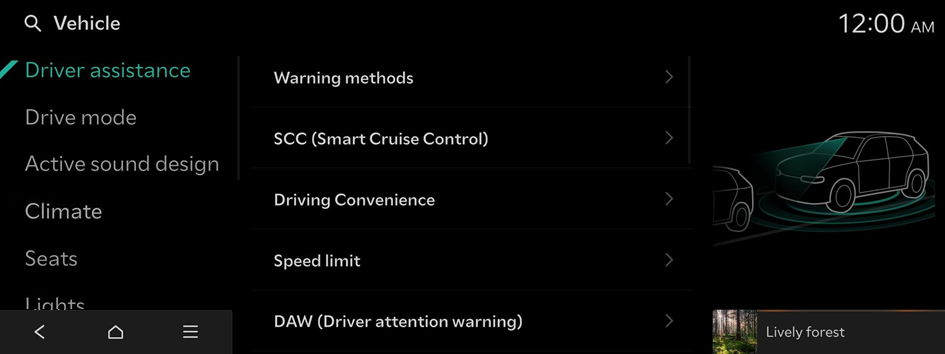

Driver assistance (if equipped)

Configure settings for various driver-assist systems, to ensure safety.

Available settings may differ depending on the vehicle model and specifications. Refer to the car owner's manual for further information about the features.
To switch the view mode for driver assist features between the image view and list view, press ▶ Change menu display. The default mode is the image view.

Warning

• Be sure to always check the road conditions while driving. The Driver Assistance system helps you drive safely and conveniently. Relying solely on the function may cause violation of traffic rules and regulations, resulting in an accident.
• Be sure to control the vehicle by your judgment and keep traffic regulations for safety. When the function is active, drive the vehicle with keeping eyes forward and checking the surroundings.
• Not all warnings or functions are necessary when they are active, and they do not replace the driver discretion under any circumstances. Stay focused on the road while driving.

Caution

Be sure to always check the vehicle surroundings while driving. The equipped cameras and sensors may not operate properly under all driving conditions.

Warning methods

The warning methods for the Driver Assistance systems.

• Warning volume: The volume of the warning sound.
• Lane Safety audible warning Off: Deactivation of the Lane Safety audible warning, even if both warning volume and haptic warning are On.
• Driving safety priority: Lowering of all other audio volumes when a driving safety warning sound is played
• Parking safety priority: Lowering of audio volumes when a parking assist view is active

SCC (Smart Cruise Control)

The properties of the Smart Cruise Control system.

• Based on driving style: Automatic adjustment of the Smart Cruise Control system settings based on driving style

To reset the SCC (Smart Cruise Control) settings, press Reset.

Driving Convenience

The properties of the Driving Convenience system.

The Driving Convenience system operates based on the information from the navigation system so you must use the system only when the navigation system operates properly.

• HDA (Motorway Driving Assist): Assistance for driving on motorways according to the set speed and distance while keeping the vehicle centred in the lane
• Lane change assist (motorway): Automatic assistance for lane changes when the turn indicator is used while HDA (Motorway Driving Assist) is active.
• Auto motorway speed change: Automatic adjustment of the vehicle speed on a motorway based on navigation data.
- It operates based on the speed cameras on the route set from the navigation system. To change the guidance settings for speed cameras, on the Home screen, press Settings ▶ Navigation ▶ Alerts ▶ Camera alert settings.

Speed limit

The properties of the Speed Limit system.

• Speed limit assist: Adjusts the vehicle set speed based on the current speed limit of the road.
• Speed limit warning: Provides a warning when the speed limit is exceeded.
• Off: Disables Speed Limit functions that use the current speed limit.
• Speed limit tolerance: Provision of a warning and adjustment of the vehicle’s set speed based on the current road’s speed limit and the selected offset

DAW (Driver attention warning)

The properties of the DAW (Driver Attention Warning) system.

• Leading vehicle departure alert: Notification of the driver when the leading vehicle drives on.
Warning
Be sure to always check the road conditions ahead or surroundings before departure. An accident caused by distracted driving can be prevented.

Driving safety

The properties of the Driving Safety system.

• Forward safety: Assistance in collision avoidance. The system provides a warning and actively controls the vehicle when a risk of forward collision is detected.
• Forward safety warning timing: The timing of the forward safety system warnings
• Forward cross-traffic safety: Assistance and warning when risk of forward cross-traffic collision is detected
• Forward/Side safety: Collision avoidance by provision of a warning and vehicle control when a risk of forward or side collision is detected
• Lane safety: Automatic adjustment of the steering wheel to keep the vehicle within the boundaries of its lane.
• Blind-spot view monitor: Display of blind-spot view in the cluster when operating the turn indicator
• Blind-spot safety: Warning on detection of a risk of blind-spot collision, and automatic vehicle control while departing a parallel parking spot.
• Safe exit: Provision of a warning and door control when a risk of blind-spot collision is detected while exiting the vehicle

Parking safety

Properties of the Parking Safety systems.

• Camera settings: The properties of the camera.
• Surround view monitor auto On: Automatic activation of the surround view monitor when the parking distance warning is active
• Auto PDW (Parking Distance Warning): Automatic activation of PDW (Parking Distance Warning) at low speeds.
• Rear safety: Provision of a warning and vehicle control when a risk of collision is detected while reversing
• Rear cross-traffic safety: Provision of a warning and vehicle control when a risk of rear cross-traffic collision is detected while reversing

Warning

• Even if your vehicle is equipped with a driver assistance system, always check for objects around the vehicle when driving or parking. Relying on the Parking Safety system may cause an accident. Accordingly, be sure to control the vehicle by your judgment.
• When the sensors cannot detect any obstacles due to the detection limit, it may cause an accident. Be sure to always check the surroundings while parking.

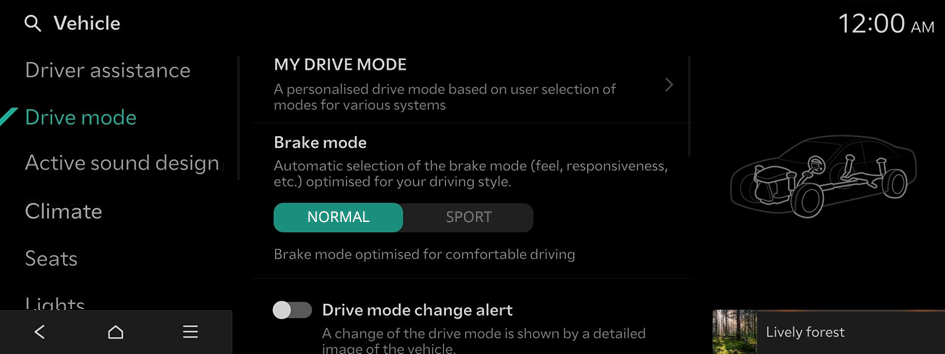

Drive mode (if equipped)

You can change the vehicle settings for driving conditions.

Available settings may differ depending on the vehicle model and specifications.

MY DRIVE MODE

A personalised drive mode based on user selection of modes for various systems

• MY DRIVE MODE: A customised drive mode based on user selections for each of the systems, which influence the driving experience.

Brake mode

Automatic selection of the brake mode (feel, responsiveness, etc.) optimised for your driving style.

Drive mode change alert

A change of the drive mode is shown by a detailed image of the vehicle.

Trailer mode

This function maintains the driving performance and estimates the distance to empty (DTE) when connecting a trailer.

ECO mode climate control

Decrease the energy consumption by reducing the heating and cooling power of the climate control system.

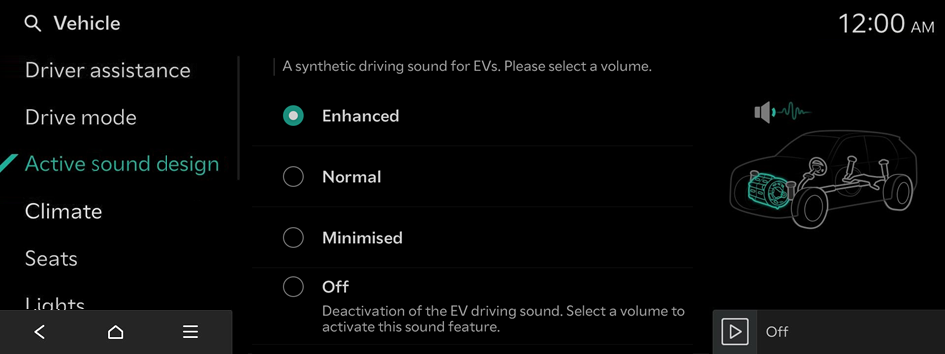

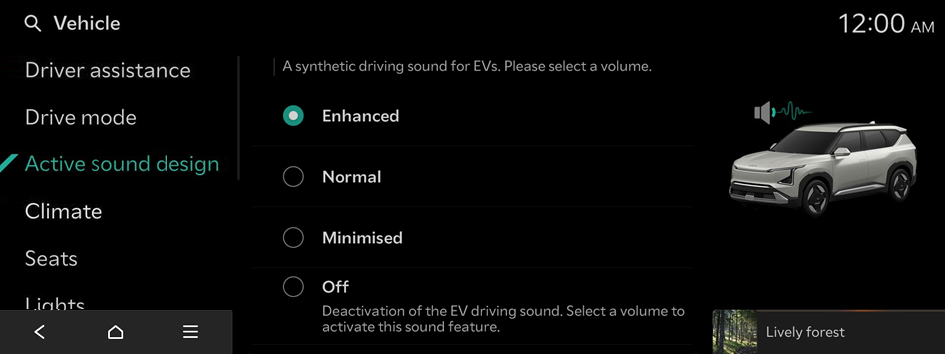

Active sound design (if equipped)

A synthetic driving sound for EVs. Please select a volume.

Available settings may differ depending on the vehicle model and specifications.

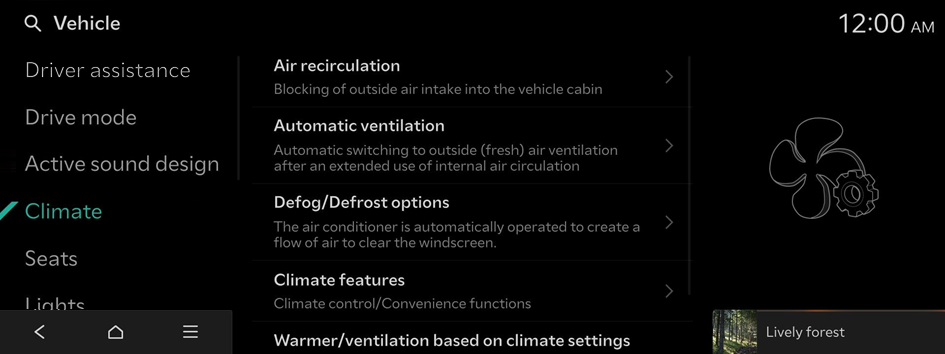

Climate (if equipped)

You can configure the operation environment for climate control system.

Available settings may differ depending on the vehicle model and specifications.

Air recirculation

Blocking of outside air intake into the vehicle cabin

• Activation on washer fluid use: Washer fluid scent is automatically prevented from entering the cabin.
• Activation upon entering a tunnel: Automatic closing of windows and activation of internal air circulation upon entering a tunnel

Automatic ventilation

Automatic switching to outside (fresh) air ventilation after an extended use of internal air circulation

• Auto dehumidify: Automatic switching to outside (fresh) air ventilation to decrease humidity after an extended use of internal air circulation

Defog/Defrost options

The air conditioner is automatically operated to create a flow of air to clear the windscreen.

• Defog/Defrost: Activation of fresh air ventilation and A/C to remove windshield moisture quickly
• Auto defog: Automatic activation of the climate system to prevent fog on the windscreen

Climate features

Climate control/Convenience functions

• Air conditioner auto-drying: After the vehicle is turned Off, the fan will run automatically to dry the inside of the air conditioner to prevent mold growth.
• Lock rear climate controls: Disabling of rear seat air condition controls
• Rear climate auto Off: Automatic deactivation of the rear climate system when no occupants are detected in the rear seats
• ECO mode climate control: Decrease the energy consumption by reducing the heating and cooling power of the climate control system.
• Climate touchscreen control restriction: The touch function will operate only on a part of the climate touchscreen.

Warmer/ventilation based on climate settings

Steering wheel warmer and driver's seat warmer/air ventilation feature are automatically activated and adjusted based on the climate settings.

• Steering wheel warmer: The steering wheel warmer is automatically adjusted based on the climate settings.
• Driver seat warmer/ventilation: The driver's seat warmer/air ventilation feature is automatically adjusted based on the climate settings.

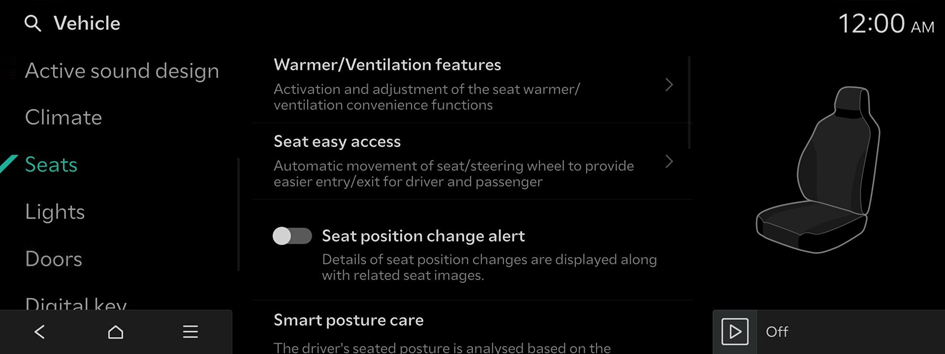

Seats (if equipped)

You can set to use various features (motions and warmer control for the driver's seat, rear seat, and steering wheel) that are related to the seats and steering wheel.

Available settings may differ depending on the vehicle model and specifications.

Warmer/ventilation based on climate settings

Steering wheel warmer and driver's seat warmer/air ventilation feature are automatically activated and adjusted based on the climate settings.

• Steering wheel warmer: The steering wheel warmer is automatically adjusted based on the climate settings.
• Driver seat warmer/ventilation: The driver's seat warmer/air ventilation feature is automatically adjusted based on the climate settings.

Seat easy access

The seat and steering wheel are automatically moved when the driver and passenger enter or exit the vehicle.

• Easy seat (fwd/bwd) access: The automatic movement of the driver's seat is disabled when entering and exiting the vehicle.
• Passenger seat easy access: The passenger seat is automatically moved when the passenger enters or exits the vehicle.
• Left rear seat easy access: The left rear seat is automatically moved to make it easier for the passenger to enter or exit the vehicle.
• Right rear seat easy access: The right rear seat is automatically moved to make it easier for the passenger to enter and exit the vehicle.
• Steering easy access: The steering wheel is automatically moved when the driver enters or exits the vehicle.

Seat position change alert

Details of seat position changes are displayed along with related seat images.

Smart posture care

Recommendation of a posture that fits the driver's body type and provision of a clinical analysis for back health

Ergo-motion seat

Ergo-motion seat movements are utilised to reduce fatigue, support driver comfort, and increase driver awareness and safety.

• Comfortable stretch: Comfortable stretch options that use seat movements to help reduce body fatigue.
• Smart Posture Assist: Assistance in maintaining a comfortable posture by adjusting the hips and waist after 1 hour of driving
• Lumbar Stabilisation System while driving: Activation of cushion/seat back support changes at the set interval to maintain comfort.

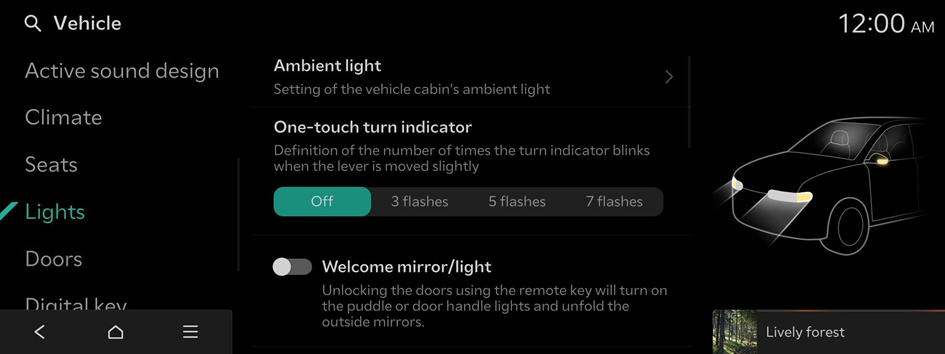

Lights (if equipped)

You can configure the settings for vehicle lights.

Available settings may differ depending on the vehicle model and specifications.

Ambient light

Setting of the vehicle cabin's ambient light

• Brightness: Adjust the brightness of the cabin's ambient light.
• Colour: Adjusts the colour of the ambient light.
• Link to drive mode: The colour of the ambient light changes according to the selected drive mode.
• Dimming under darkened conditions: Automatic dimming of the ambient light under darkened conditions
• Link to speed alert: When a speed alert is provided by the navigation system, the mood lighting flashes.
• Sync light with speed: The brightness of the ambient lighting is adjusted based on the vehicle speed.

One-touch turn indicator

Definition of the number of times the turn indicator blinks when the lever is moved slightly

Welcome mirror/light

Unlocking the doors using the remote key will turn on the puddle or door handle lights and unfold the outside mirrors.

Headlight time-out

When the ignition is turned Off, the tail lamps and head lamps turn Off after approximately 15 seconds.

Lighting pattern

The type of lighting to be used for the dynamic welcome light. The selected pattern will be applied at the next vehicle start-up.

HBA (High Beam Assist)

Assistance in reducing high beam glare to oncoming vehicles.

Intelligent High Beams

The speed at which the intelligent headlights (high beams) activate. Beams will adjust to prevent blinding nearby vehicles.

Interior lights On

The button and switch lights will stay illuminated, even in daylight conditions.

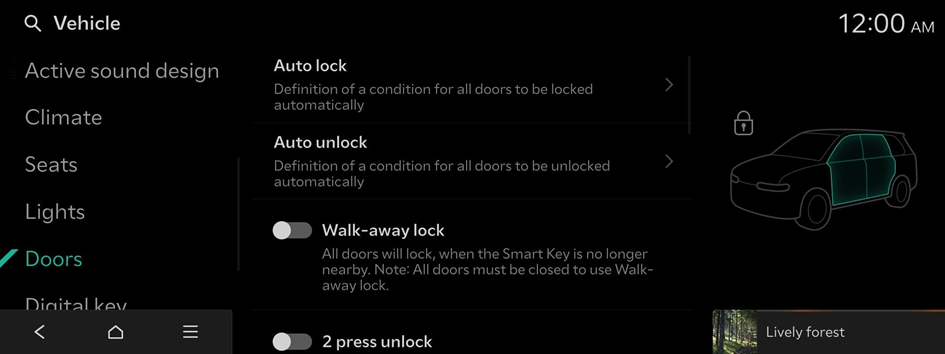

Doors (if equipped)

You can configure the operation environment for the trunk (tailgate) and doors.

Available settings may differ depending on the vehicle model and specifications.

Auto lock

Definition of a condition for all doors to be locked automatically.

Auto unlock

Definition of a condition for all doors to be unlocked automatically.

2 press unlock

All doors are unlocked when the unlock button is pressed twice. (Single press unlocks driver door only)

When you press the door unlock button once, only the driver's seat door is unlocked.

Power Trunk or Power Tailgate

Press [Power Trunk (tailgate)] to automatically open or close the boot.

The displayed name may differ depending on the vehicle model and specifications.

Power Trunk Opening Speed or Power Tailgate Opening Speed

Definition of the Power Trunk (tailgate) opening and closing speed.

The displayed name may differ depending on the vehicle model and specifications.

Power Trunk Opening Height or Power Tailgate Opening Height

The height, the power trunk (tailgate) automatically moves on opening.

The displayed name may differ depending on the vehicle model and specifications.

Smart Trunk or Smart Tailgate

The boot (tailgate) will be automatically opened when approaching the boot (tailgate) with the Smart Key.

The displayed name may differ depending on the vehicle model and specifications.

Remote window control

Enable/disable the remote window control function.

Digital key (if equipped)

Available settings may differ depending on the vehicle model and specifications.

Smartphone key

Setting of the smartphone key

• Personal smartphone key: Saving/deleting of the personal smartphone key
• Shared keys: Display of shared smartphone keys
- A digital key can be shared by a maximum of three smartphones. Ensure the smartphones were made by the same manufacturer.

NFC card key

Saving or deleting an NFC card key

• Enable card key: Start the vehicle and lock/unlock doors using a card key.

Digital key information

Shows the serial number of the authentication controller.

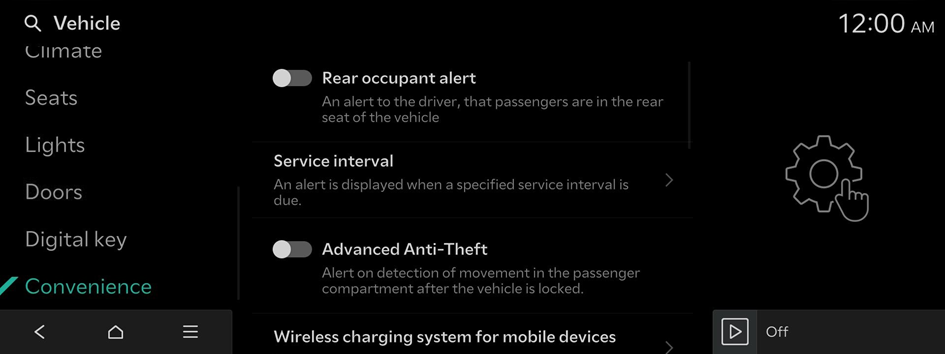

Convenience (if equipped)

You can configure the features for convenience such as wireless charging.

Available settings may differ depending on the vehicle model and specifications.

Rear occupant alert

An alert to the driver, that passengers are in the rear seat of the vehicle.

Service interval

An alert is displayed when a specified service interval is due.

• Enable service interval: An alert is displayed when a specified service interval is due.
• Distance: Sets the service interval reminder distance.
• Interval: Enter the service interval reminder time.

To initialise all service interval reminder settings, press Reset.

Advanced Anti-Theft

Alert on detection of movement in the passenger compartment after the vehicle is locked.

Wireless charging system for mobile devices

Wireless charging of compatible devices.

Auto rear wiper (reverse)

Rear wiper will automatically wipe if the front wipers are On and the gear position is in reverse

Digital side mirrors

The rear view camera image is displayed in a digital side mirror.

Smart glass tinting

The level of tinting for the vehicle's glass panes

Trailer mode

This function maintains the driving performance and estimates the distance to empty (DTE) when connecting a trailer.

Trailer checklist

Things to check before using the trailer
