Using Off-road mode (if equipped)

View information related to Off-road driving.

On the Home screen, press Off-road.

• The screen may differ depending on the vehicle model and specifications.

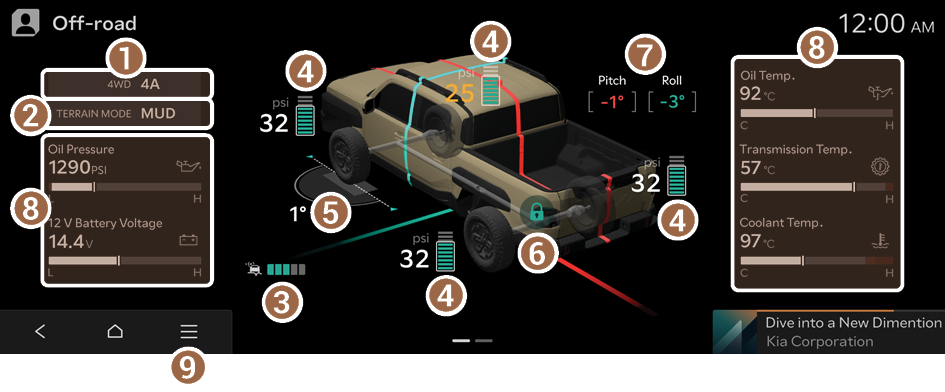

Off-road screen

1. Displays 4WD mode.
2. Displays terrain mode.
   • The floor of the 3D vehicle changes, depending on the set driving mode. When driving at speeds above 3 km/h, the 3D vehicle and floor move at a constant speed, allowing drivers to view the appearance of the moving vehicle.
3. Displays X-TREK mode.
4. Displays each tire’s pressure graph, driving power distribution rate and rotation angle.
5. Moves the wheel objects according to the steering wheel angle.
6. Displays whether or not e-LD/e-LSD is enabled.
7. Displays information on the pitch and roll angles.
   • The angle of the 3D vehicle changes, depending on the pitch and roll angles. If the pitch and roll angles are not valid values, the X and Y axes are not displayed on the 3D vehicle.
8. Displays information on the oil pressure and temperature.
9. Displays the list of menus.
   • •  Online Manual: View the online manual by scanning the QR code with your mobile phone.

Viewing Off-road driving information

Obtain the compass information, ground view and top view during Off-road driving.
