SVM (Surround View Monitor) (If equipped)

About SVM (Surround View Monitor)

  • SVM (Surround View Monitor) is an option that is provided to the customers who selected the option.

  • Through the 4 cameras installed on the vehicle, it can view the front, back, left and right side.

  • While the vehicle is started, if the gear is put to R position, it automatically starts SVM (Surround View Monitor).

  • If the gear is changed from R to P position, SVM (Surround View Monitor) operation stops.

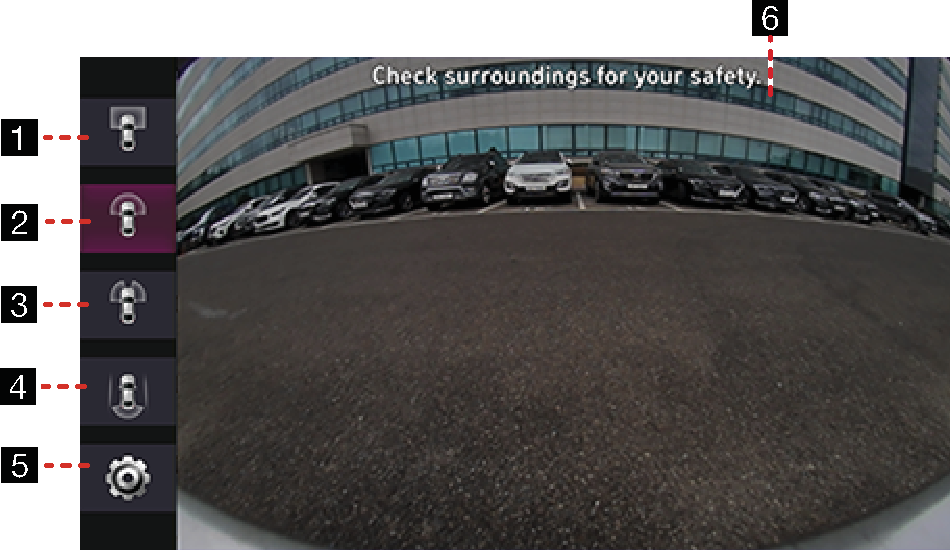

Operating front SVM

After starting the vehicle, if you press [] after putting gear to N or D, the front SVM starts.

  1. Front Top View (Front + Left Front + Right Front)

    Displays an enlarged top view of the front.

  2. Wide View (Front)

    Only the front screen of the vehicle is displayed.

  3. Left / Right Corner View (Left Front + Right Front)

    It displays the left front / right front screen of the vehicle simultaneously.

  4. Driving Support View

    It displays the rear view through the rear camera while driving.

  5. Settings

    Move to SVM Settings Menu.

  6. Front Camera Screen

    The front camera's view is displayed.

While front SVM is running, if you drive at about 10 km/h or more, SVM is turned off. At this state, even if you drive at about 10 km/h or less, SVM is remained at OFF state

Operating rear SVM

After starting the vehicle, if you put gear at R position, rear SVM starts.

  1. Rear Top View (Rear + Left Rear + Right Rear)

    Displays an enlarged top view of the rear.

  2. Wide View (Rear)

    Displays only the rear screen of the vehicle.

  3. Left/Right Corner View (Left Rear + Right Rear)

    Displays the left rear / right rear screen of the vehicle simultaneously.

  4. Driving Support View

    It displays the rear view through the rear camera while driving. (If the gear is put to R position, it is deactivated)

  5. Settings

    Moves to SVM Settings Menu

  6. Rear Camera Screen

    Displays rear view through the rear camera.

SVM camera has an optical lens to secure the wide view, so there is a little difference between the distance shown on the screen and the actual one. For safety, make sure to check the rear, left, and right view by yourself.

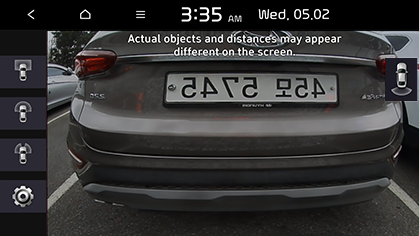

Operating the driving support view

  • Rear camera is an option for the customers who selected the option.

  • It is a device that can see the rear of the vehicle while driving through the rear camera mounted on the vehicle.

After turning on the engine, move the lever of the transmission to the N or D position, press [], and then press [] on the screen to execute the driving support view.

When the driving support view is activated, the driving support view is maintained regardless of the vehicle speed. Press the [] or the AVN keyboard button to turn it off.

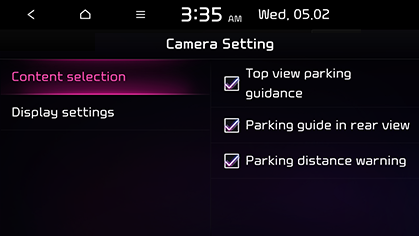

Camera settings

If you press [] button, it moves to camera setting screens.

  • Content selection: Sets parking guide view option.

  • Display settings: Adjusts Brightness/Contrast.
