Settings

Configuring the navigation settings

You can configure the navigation settings for navigation operations, screen display, voice guidance, etc. You can also export or import the location data.

  • For details on how to use navigation functions, see the "Navigation" chapter. ▶  See "Navigation."
  1. On the All Menus screen, press Setup ▶ Navigation.

    The navigation settings screen appears.

    Type1

    Type2

    • The screen may differ depending on the vehicle model and specifications.
    • If the vehicle is type 2, it is possible to change the graphic theme to white or black. ▶ See "Graphic Themes (if equipped)."
  2. Configure the settings required:
  • Press ▶ Search for Settings or press and enter a keyword to search for a setting item. You can also search for a setting item by voice.

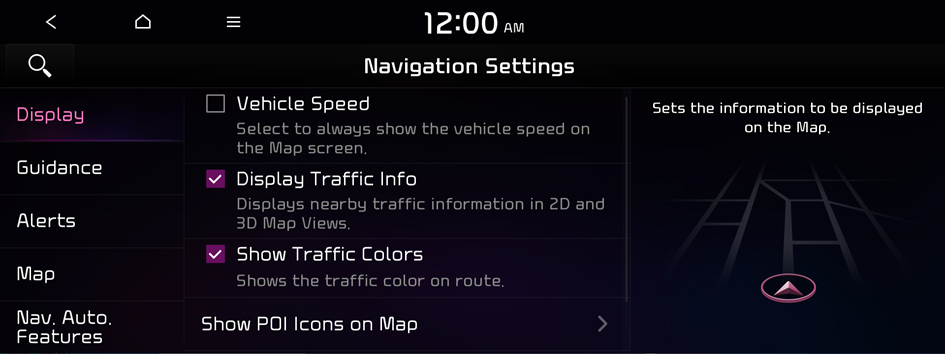

You can specify the information to display on the navigation map screen.

  • The screen may differ depending on the vehicle model and specifications.

Vehicle Speed

Displays the vehicle speed on the map.

Display Traffic Info

Displays nearby traffic information on the map.

Show Traffic Colors

Used to display the route guide line colors depending on the traffic conditions.

Show POI Icons on Map

You can specify the icon type to display nearby places on the map.

  • Press on the right side of Gas Station to select display options for fuel prices.
    • Gas Station on the Map screen will also show their fuel prices if they are lower than the set price.
    • Select Show Fuel Price Information on the Map to view recommended fuel prices based on the prices offered in the area.
    • Fuel prices on the map may differ from actual ones.

Fuel Prices (if equipped)

When displaying gas stations on the map, the fuel prices below a specific range can be displayed.

  • Select Show Fuel Price Information on the Map to view recommended fuel prices based on the prices offered in the area.
  • Fuel prices on the map may differ from actual ones.

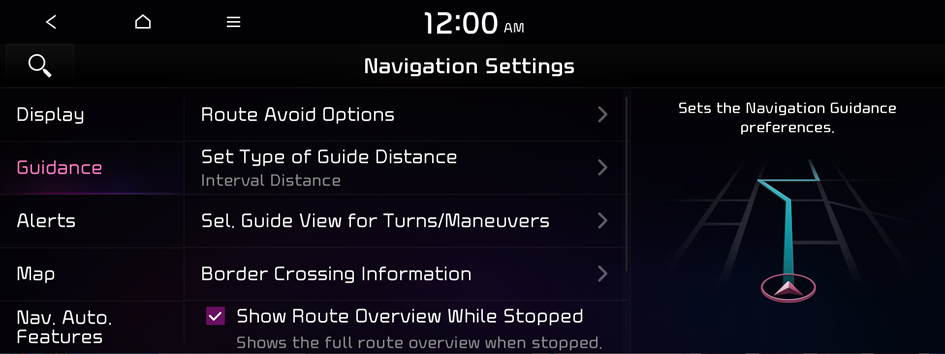

You can configure the navigation guidance settings.

  • The screen may differ depending on the vehicle model and specifications.

Route Options or Route Avoid Options (if equipped)

You can set desired route search options.

Set Type of Guide Distance

You can configure settings for displaying the distance to the destination during guidance.

  • •  Interval Distance: Displays the distance as the one between different zones.
  • •  Cumulative Distance: Displays the distance as the one between the current position and target position.

Sel. Guide View for Turns/Maneuvers

You can specify the information to display on the navigation map screen while driving.

  • •  Detailed Guidance View: You can set to display detailed information on the Map screen, such as moving directions and lane change.

Border Crossing Information

You can set whether or not to display the border crossing information on the screen.

  • •  Border Crossing Information: Configure settings for notification when entering a country's border.
  • •  Country Information: View country information of the current location.

Compare Routes (if equipped)

Select whether to provide additional routes by comparing with the current route.

Show Route Overview While Stopped

You can set to display the route overview from the start point to the destination when the vehicle is stationary.

End Navigation Voice Guidance Near Destination

If the set destination is a saved location, voice guidance is turned off when the vehicle gets closer to the destination.

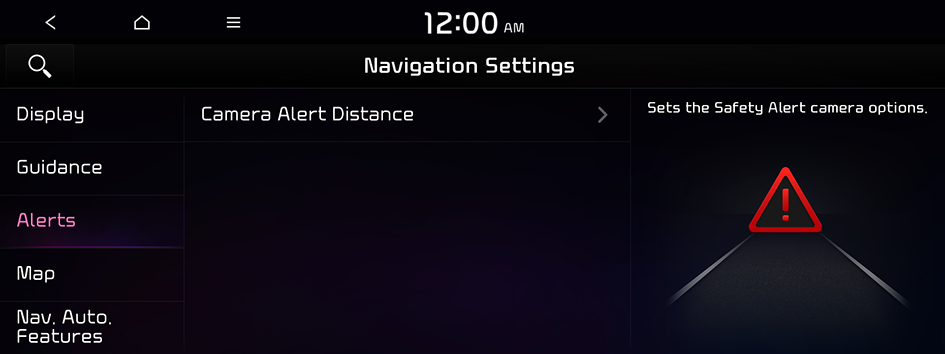

You can set to activate drive assist features when needed for safety.

  • The screen may differ depending on the vehicle model and specifications.

Warning

Be sure to check the road conditions while driving, because the camera information may get changed occasionally after a map update to the latest version. Relying solely on the driving assist system may cause violation of traffic rules and regulations, resulting in an accident.

Camera Alert Distance

You can set when to receive alerts against and voice descriptions about traffic enforcement cameras.

  • •  Camera Alert Distance Depending on the Speed Limit: The time when to get alerts for traffic enforcement cameras is automatically set depending on the driving speed. When the Camera Alert Distance Depending on the Speed Limit function is off, the time when to get guidance on traffic enforcement cameras on Local Roads and Freeway can be selected.

You can specify the items to display on the map.

  • The screen may differ depending on the vehicle model and specifications.

Map Mode

You can specify the items to display on the map.

  • •  Map View: Set the navigation map display mode. To fix the top of the map screen to north, select North Up 2D. To automatically rotate the map screen based on the driving direction, select Heading Up 2D. If you select Heading Up 3D, the map screen is displayed in 3D mode and automatically rotates based on the driving direction.
  • •  3D Buildings: Displays major buildings on the map in three dimensions.
  • •  Auto-scale: Automatically changes the scale of the map.

Map Font Size

You can set the size of the screen font on the navigation map.

Daytime Map Color

You can set the navigation map theme color.

Vehicle Symbol Color

You can specify the icon type to display your current location on the map.

Set Map Auto-scale

You can set the scale, which is automatically adjusted based on the vehicle speed.

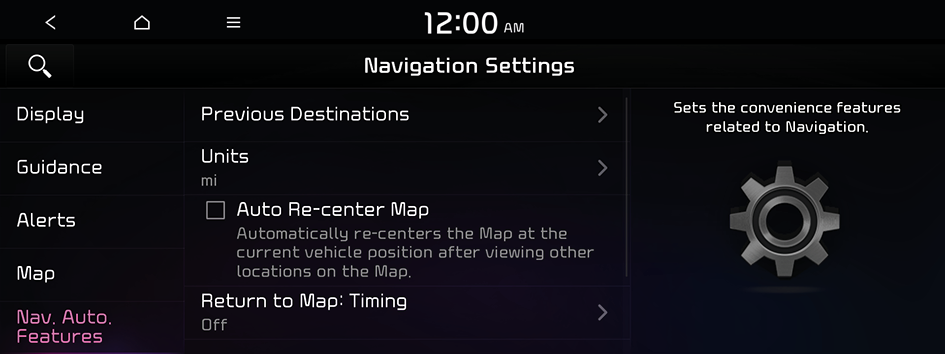

You can configure navigation options, e.g., exporting or importing places from and to Saved Places.

  • The screen may differ depending on the vehicle model and specifications.

Previous Destinations

You can set to automatically save the previous destination and display the previous destinations when the navigation system starts.

  • •  Save Previous Destinations: The previous destination is automatically saved.
  • •  Display Previous Destinations when entering the Map screen: When the navigation system starts, the list of recent destinations appear on a pop-up window.

Units

You can set the distance unit of the navigation map to km or mi (if equipped).

Auto Re-center Map

You can set the system to automatically display the current position when the specified period of time elapses after changing to another position on the map.

Return to Map: Timing

You can set the system to automatically display the map screen after a specified period of time when switched to the Radio/Media mode screen while using the navigation.

  • This feature works while driving once a destination has been set.
  • This feature is not available on the phone projection screen.

User Data (if equipped)

You can import location data from a USB device to the system, or export the data on the system to a USB device.

  • When importing or exporting the location data, you can uses only the USB device formatted in exFAT, FAT16/32, or NTFS.
  • •  Import Favorites and Previous Destinations from USB: You can import saved location and destination information, saved on your USB storage device, to the system.
    • Previous information saved on the system will be deleted.
    • If location information is imported from a different navigation device or system, the locations may appear differently because the device/system uses a different coordinate system.
  • •  Export Favorites and Previous Destinations to USB: You can export saved location and destination information, saved on the system, to your USB storage device.
    • Previous information saved on the USB storage device will be deleted.

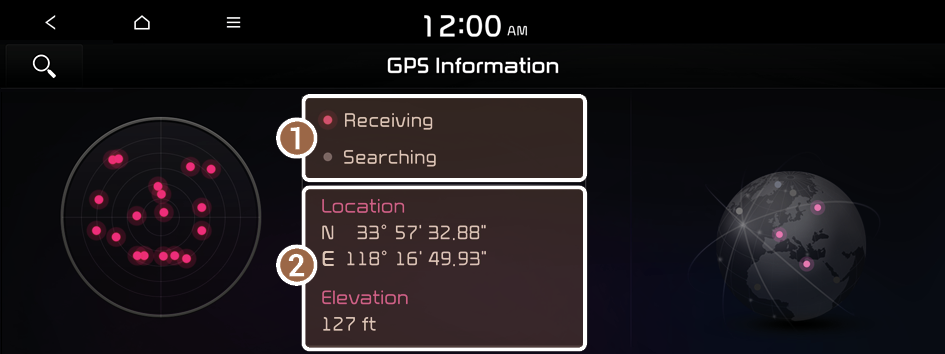

GPS Information

You can see the GPS satellite status and coordinates of the current position.

The following information appears:

  1. Can see the reception status of the satellite signals.
    • •  Receiving: Satellite signals are being received and the current position is recognized.
    • •  Searching: The system is scanning the satellite signals.
  2. Can see the current location.
