Settings

Configuring the vehicle settings

You can configure the functions for driving and related environments.

Caution

Make sure you stop the vehicle before changing settings to ensure safety.

  • Vehicle settings can be changed only when the vehicle is on.
  • Available settings may differ depending on the vehicle model and specifications.
  • Depending on the climate control system, some functions may not be supported.
  1. On the All menus screen, press Settings ▶ Vehicle.

    The vehicle settings screen appears.

    Type1

    Type2

    • The screen may differ depending on the vehicle model and specifications.
    • If the vehicle is type 2, it is possible to change the graphic theme to white or black. ▶ See "Graphic themes (if equipped)."
  2. Configure the settings required:
  • Press ▶ Search for settings or press and enter a keyword to search for a setting item.

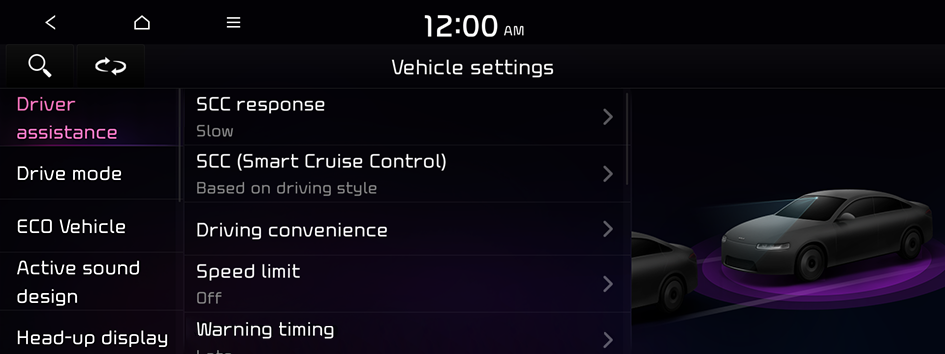

You can set to use various systems that assist the driver for safety.

  • The screen may differ depending on the vehicle model and specifications. Refer to the car owner's manual for details of the function.
  • If the icon is available on the screen, press to switch the view mode for driver assistance functions to image or list view. The functions are shown in image view by default.

Warning

  • •  Be sure to always check the road conditions while driving. The Driver Assistance system helps you drive safely and conveniently. Relying solely on the function may cause violation of traffic rules and regulations, resulting in an accident.
  • •  Be sure to control the vehicle using your best judgement and follow traffic regulations for safety. When the function is active, drive the vehicle keeping your eyes forwards and checking surroundings.
  • •  Not all warnings and functions are necessary when they are active, and they do not replace driver discretion under any circumstances. Stay focused on the road while driving.

Caution

Be sure to always check the vehicle surroundings while driving. The equipped cameras and sensors may not operate properly under all driving conditions.

SCC response (if equipped)

Adjusts the responsiveness of Smart Cruise Control to the acceleration of a leading vehicle.

SCC (Smart Cruise Control) (if equipped)

Sets the properties of the Smart Cruise control.

Driving convenience (if equipped)

Sets the properties of the Driving Convenience system.

  • The Driving Convenience system operates based on the information from the navigation system so you must use the system only when the navigation system operates properly.
  • •  LFA (Lane Following Assist): Automatically adjusts the steering wheel to keep the vehicle centred in the lane.

    Warning

    Lane Following Assist is not a substitute for safe driving practices, but a convenience function. It is the responsibility of the driver to always be aware of the surroundings and steer the vehicle.

    Caution

    Be sure to always check the vehicle surroundings while driving, because Lane Following Assist may not work properly when the lane and road conditions are poor.

  • •  HDA (Motorway Driving Assist): Assists driving on a highway according to the set speed and distance to the leading vehicle while keeping the vehicle centred in the lane.
  • •  Lane change assist (motorway): Automatically changes lanes when the turn signal switch is toggled while driving on a highway (if equipped).
  • •  Speed zone slowdown (motorway): Automatically decelerates in a highway speed enforcement zone.
    • It operates based on the speed cameras on the route set from the navigation system.
  • •  Motorway auto curve slowdown: Automatically decelerates in a highway curve zone.
    • It operates based on the curve zones on the route set from the navigation system.
  • •  Motorway auto speed change: Automatically adjusts the vehicle speed on a highway based on navigation data.

Speed limit (if equipped)

Sets the properties of the Speed Limit system.

  • •  Speed limit assist: Adjusts the vehicle set speed based on the current speed limit of the road.
  • •  Speed limit warning: Provides a warning when the speed limit is exceeded.
  • •  Off: Disables the Speed Limit functions.
  • •  Speed limit offset: Adjusts the offset amount of the speed limit.

Warning timing (if equipped)

Sets the timing of the warning.

Warning methods (if equipped)

Sets the volume and priority of the warning sound for driver assistance. You can configure the haptic warning settings if steering wheel vibration warning is supported.

  • •  Warning volume: The volume of the warning sound.
  • •  Haptic warning: The intensity of the steering wheel vibration warning.
  • •  Lane Safety audible warning Off: Automatically assists with lane changes when the turn signal is on while Motorway driving assist is active (if equipped).
  • •  Driving safety priority: Lowers all other audio volumes when a driving safety system sounds a warning.
  • •  Parking safety priority: Lowers all other audio volumes when a parking assist view is active.

DAW (Driver Attention Warning) (if equipped)

Sets the properties of the Driver Attention Warning system.

  • •  Leading vehicle departure alert: Alerts the driver during a stop, when the leading vehicle departs.

    Warning

    Be sure to always check the road conditions ahead and surroundings before departure. An accident caused by distracted driving can be prevented.

  • •  Inattentive driving warning: Provides a warning when signs of driver inattentiveness are detected, and recommends a rest if needed.

Forward safety (if equipped)

Sets the properties of the Forward Safety system.

  • •  Fwd. cross-traffic safety: Provides a warning and emergency braking when a risk of forward cross-traffic collision is detected.
  • •  Active assistance: Provides a warning and vehicle control when a risk of forward collision is detected.

    Warning

    This function is only a supplemental function and it is not intended to, nor does it replace the need for extreme care and attention of the driver. The sensing range and objects detectable by the sensors are limited. Pay attention to the road conditions at all times.

  • •  Warning only: Provides a warning when a risk of forward collision is detected.
  • •  Off: Disables the Forward Safety functions.

Lane safety (if equipped)

Sets the properties of the Lane Safety system.

  • •  Assist: Automatically assists with steering to help prevent the vehicle from leaving the lane.

    Warning

    Lane Keeping Assist is a supplementary function for safe driving and does not replace driving. It is the responsibility of the driver to always be aware of the surroundings and steer the vehicle.

    Caution

    When the lanes are not recognised properly by the front view camera, always check the surroundings because Lane Keeping Assist may not work properly.

  • •  Warning only: Provides a warning when the vehicle leaves the lane without operating the turn signal switch.
  • •  Off: Disables the Lane Safety functions.

Blind-spot safety (if equipped)

Sets the properties of the Blind-Spot Safety system.

  • •  Blind-spot view monitor: Displays the blind-spot view on the cluster when operating the turn signal switch.
  • •  SEA (Safe Exit Assist): Provides a warning and door control when an approaching vehicle is detected in the vehicle's blind spot.
  • •  SEW (Safe Exit Warning): Provides a warning when an approaching vehicle is detected in the vehicle's blind spot.

    Caution

    • •  Safe Exit Assist may not operate properly when a vehicle is approaching rapidly two lanes over from your vehicle or a vehicle is approaching at a fast speed from the rear in the lane next to your vehicle.
    • •  Safe Exit Assist may not operate properly if there is a vehicle or obstacle at the rear area of your vehicle.
    • •  Safe Exit Assist may be activated later than normal or may not operate properly if a vehicle is approaching fast from the rear of your vehicle.
    • •  Safe Exit Assist may not operate when the Blind-Spot Safety system malfunctions as follows:
      • The warning message of the Blind-Spot Safety system appears on the instrument cluster.
      • The sensors of the Blind-Spot Safety system are dirty or covered.
      • The Blind-Spot Safety system does not generate warning or generates the wrong alert.
  • •  Active assistance: Provides a warning and vehicle control when a risk of blind-spot collision is detected.

    Warning

    Always be aware of road conditions while driving and be alert for unexpected situations even though Blind-Spot Collision Warning and Blind-Spot Collision-Avoidance Assist are operating.

  • •  Warning only: Provides a warning when a risk of blind-spot collision is detected.
  • •  Off: Disables the Blind-Spot Safety function.

Parking safety (if equipped)

Sets the properties of the Parking Safety systems.

  • •  Camera settings: Sets the properties of the cameras.
    • Display contents: Specify information that will be displayed on the view screen. Setting items may differ depending on the vehicle model and camera type.
    • Display settings: Adjust the brightness and contrast of the view screen. To initialise all Surround View or Rear View screen settings of the phone projection, press Default.
  • •  Surround view monitor auto On: Automatically activates Surround View Monitor when Parking Distance Warning is active.
  • •  Parking distance warning auto on: Automatically activates Parking Distance Warning when travelling at low speeds.
  • •  Rear safety: Provides a warning and emergency braking when a risk of rear collision is detected while reversing.
  • •  Active assistance: Provides a warning and emergency braking when a risk of rear collision is detected while reversing.
  • •  Warning only: Provides a warning when a risk of rear collision is detected while backing up.
  • •  Off: Disables the Parking Safety functions.
  • •  Rear cross-traffic safety: Provides a warning when a risk of rear cross-traffic collision is detected while reversing. It provides vehicle control to avoid collision, depending on the vehicle model and specifications.

Warning

  • •  Even though the vehicle is equipped with the Parking Safety system, be sure to check for obstacles in the surroundings while driving. Relying on the Parking Safety system may cause an accident. Accordingly, be sure to control the vehicle by using your best judgement.
  • •  When the sensors cannot detect any obstacles due to the detection limit, it may cause an accident. Be sure to always check the surroundings while parking.

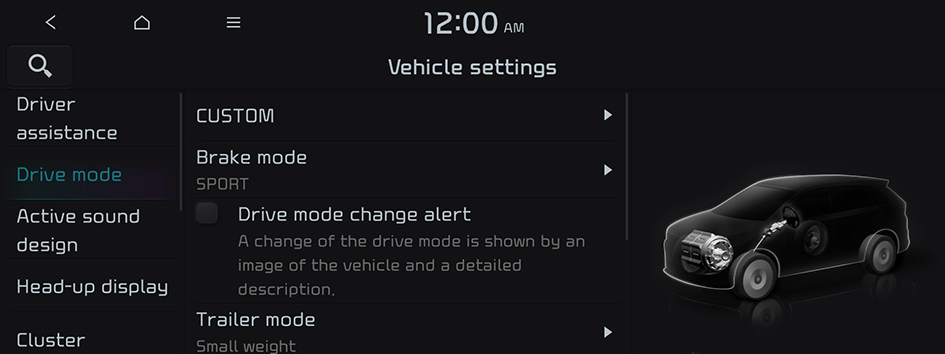

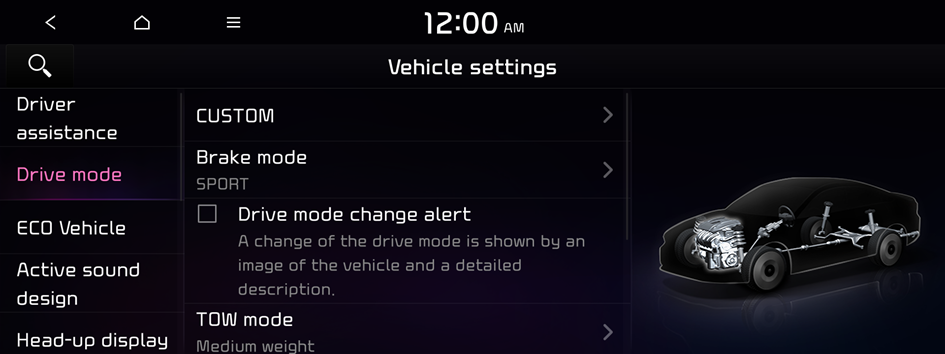

You can change the vehicle settings for driving conditions.

Type1

Type2

  • The screen may differ depending on the vehicle model and specifications.

CUSTOM (if equipped)

You can set to select the drive mode optimised for the driving habits or road conditions.

  • •  Motor: Customisable settings for the motor mode (if equipped).
    • ECO: Selects the mode optimised for Eco driving.
    • COMFORT: Selects the drive mode optimised for comfortable, everyday driving.
    • SPORT: Selects the drive mode optimised for sporty driving.
    • SPORT+: Selects the drive mode optimised for dynamic driving (if equipped).
  • •  Powertrain: Selects a powertrain mode.
    • ECO: Selects the mode optimised for Eco driving.
    • COMFORT: Selects the drive mode optimised for comfortable, everyday driving.
    • SPORT: Selects the drive mode optimised for sporty driving.
    • SPORT+: Selects the drive mode optimised for dynamic driving (if equipped).
  • •  Steering: Selects a steering mode.
    • COMFORT: Selects the steering mode optimised for a smooth steering feel.
    • SPORT: Selects the steering mode optimised for agile steering with a sporty feel.
  • •  Suspension: Selects a suspension mode.
    • SMART: Automatically selects an optimised driving mode based on your driving style.
    • COMFORT: Selects the suspension mode optimised for a smooth, comfortable ride.
    • COMFORT+: Selects the suspension mode optimised for the smoothest, most comfortable ride.
    • SPORT: Selects the suspension mode optimised for a sporty ride in which you feel the road.
    • SPORT+: Selects the suspension mode optimised for a dynamic, sporty ride with optimal road feel (if equipped).
  • •  AWD (All-wheel-drive): Selection of an all-wheel drive mode.
    • ECO: Selects the mode optimised for Eco driving.
    • COMFORT: Selects the drive mode optimised for comfortable, everyday driving.
    • SPORT: Selects the drive mode optimised for sporty driving.
  • •  e-LSD: Selects the Elec. Limited Slip Differential (eLSD) mode (if equipped).
    • NORMAL: Optimises the distribution of power/traction between the left and right wheels of the vehicle for normal, comfortable driving.
    • SPORT: Optimises the distribution of power/traction between the left and right wheels of the vehicle for sporty driving.
  • •  ESC: Selects the Electronic Stability Control (ESC) mode (if equipped).
    • NORMAL: Selects the Electronic Stability Control (ESC) mode optimised for everyday, stable driving.
    • SPORT: Selects the Electronic Stability Control (ESC) mode optimised for sporty driving.

Drive mode change alert (if equipped)

A change of the drive mode is shown by an image of the vehicle and a detailed description.

TOW mode (if equipped)

Set the trailer weight to refer to when entering tow mode.

Trailer mode (if equipped)

Maintain driving performance and estimate the drivable range when a trailer is connected.

Eco mode climate control (if equipped)

Decrease the cooling/heating level to increase the drivable range.

Lateral seat support enhancement (if equipped)

Reinforces seat side bolstering to offer a sporty driving experience.

ECO coasting (if equipped)

You can enable coasting while driving to improve fuel efficiency.

This setting allows the transmission to disengage the engine while driving in ECO mode or SMART mode, provided that the coasting conditions are met.

  • ECO coasting is available only when the drive mode supports ECO or SMART mode.
  • Available settings may differ depending on the vehicle model and specifications.

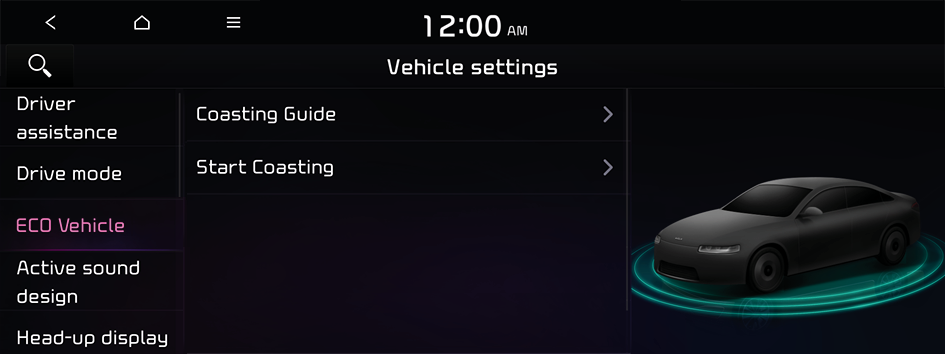

Set the convenience features available for ECO vehicles.

Coasting Guide (if equipped)

Set the system to notify when to release the accelerator pedal to improve fuel efficiency.

Start Coasting (if equipped)

Set when to receive the accelerator release notification.

Turn on or off the engine sound function which generates a virtual engine sound.

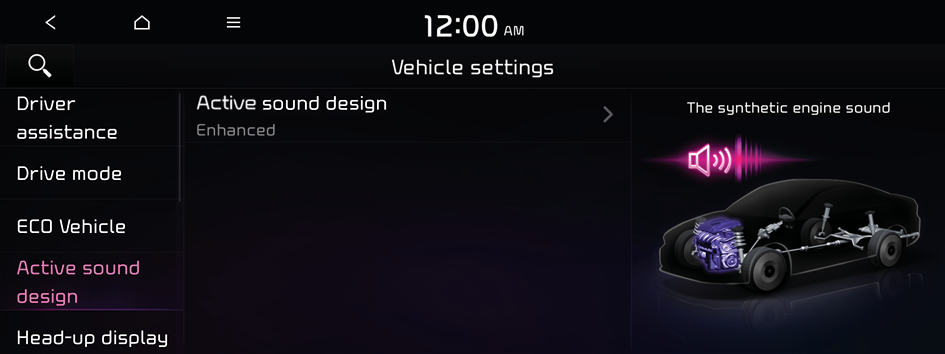

Active sound design (if equipped)

Adjust the interior engine sound volume.

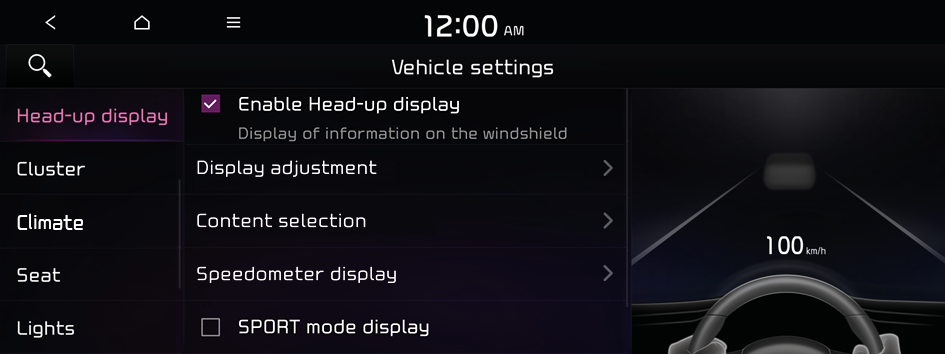

You can set to use the head-up display that displays information such as driving speed and road-related information while driving.

Enable Head-up display (if equipped)

Can determine whether or not to use the head-up display.

Display adjustment (if equipped)

Adjust the height, rotation, and brightness of the head-up display.

Content selection (if equipped)

Select the items to display on the head-up display.

Speedometer display (if equipped)

Set the driving speed items and colours to display on the head-up display.

SPORT mode display (if equipped)

Displays information about sporty driving on the head-up display, in sync with SPORT mode.

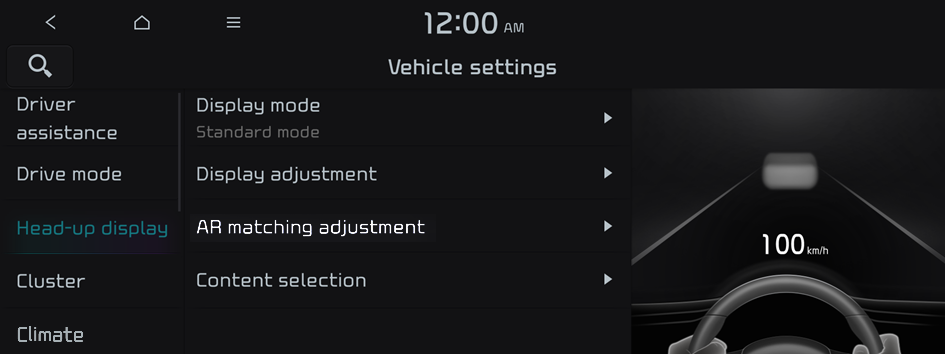

You can turn on the augmented reality (AR) head-up display function which displays information such as driving speed and road-related information while driving.

Display mode (if equipped)

Enable/disable the head-up display, and configure the display mode settings.

Display adjustment (if equipped)

Adjust the height, rotation, and brightness of the head-up display.

AR matching adjustment (if equipped)

Adjust settings so that vehicle position on road matches information shown on the head-up display.

Content selection (if equipped)

Select the items to display on the head-up display.

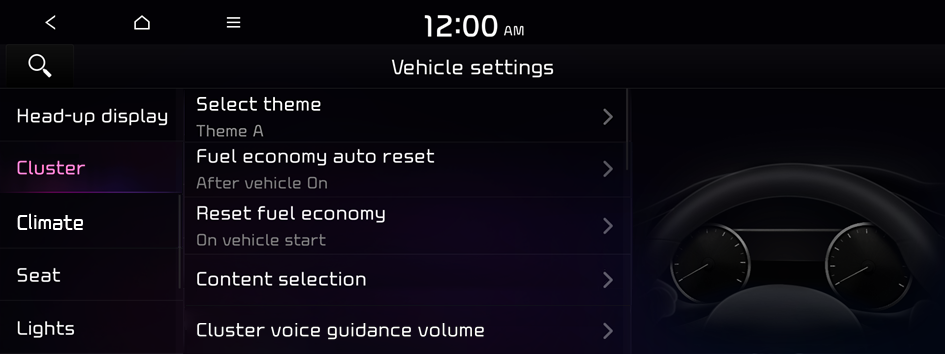

You can set the data to display on the instrument cluster and the volume and type for guiding beep.

Brightness

You can set the system brightness to be adjusted according to the ambient lighting conditions or set the screen to stay bright or dimmed. ▶ See "Brightness."

Select theme (if equipped)

Select and apply a theme to the cluster.

  • •  Sync with the time and weather: The theme automatically switches depending on the time and weather (if equipped).
  • •  Link to drive mode: Cluster theme changes automatically based on the Drive mode.

Fuel economy auto reset or EV economy auto reset (if equipped)

You can set to automatically initialise the average fuel economy.

  • •  After vehicle On: The average fuel economy is automatically initialise whenever you drive the vehicle.
  • •  After refuelling: The average fuel economy is automatically initialise whenever you refuel the vehicle.
  • •  After recharging: The average fuel economy is automatically initialise whenever you charge the vehicle (EV only).
  • •  Off: The average fuel economy initialise is unavailable.

Reset fuel economy or EV economy reset (if equipped)

Select which average fuel economy to display on the cluster.

  • •  On vehicle start: Displays the fuel economy after engine restart.
  • •  After refuelling: Displays the fuel economy after refuelling.
  • •  After charging: Displays the fuel economy after recharging (EV only).
  • •  Manually: Displays the accumulated fuel economy.
  • The displayed name may differ depending on the vehicle model and specifications.

Content selection (if equipped)

You can set the content to display on the instrument cluster.

  • •  Gear position pop-up: When the gear is shifted, the information pop-up appears.
  • •  Wiper/Lights display: When the wiper or light lever operates, the operation mode appears.
  • •  Traffic signs: Display of traffic information such as speed limits.
  • •  Blind-spot view monitor: Displays the blind spot view on the instrument cluster when the turn signal lamp is operating.
  • •  Icy road warning: When the outside temperature drops below 4 °C (39 °F), the possibility of road icing appears.

Cluster voice guidance volume (if equipped)

You can adjust the voice guidance volume of the cluster.

Welcome sound (if equipped)

You can set to generate the notification sound when turning on or off the instrument cluster.

Speedometer subscale (if equipped)

You can set to display the speedometer subscale on the instrument cluster.

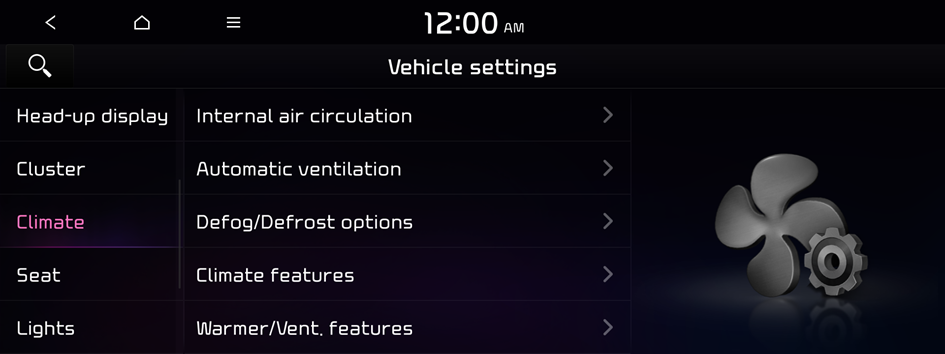

You can configure the operation environment for climate control system.

  • The screen may differ depending on the vehicle model and specifications.

Internal air circulation (if equipped)

You can set to keep the inside air pleasant by blocking inflow of outside air.

  • •  Activation on washer fluid use: Sets to automatically switch to the inside air circulation mode to prevent inflow of washer fluid scent when spraying washer fluid.
  • •  Activation on external dust concentration: Sets to automatically switch to the air purification mode to keep inside air pleasant when the fine dust index is high (if equipped).
  • •  Recirculation Mode Plus: Set to keep the interior air pleasant by controlling windows and climate system automatically in coordination with the vehicle location from the navigation system (if equipped).
  • •  Activation upon entering a tunnel: Automatic activation of internal air circulation upon entering a tunnel (if equipped).

Automatic ventilation (if equipped)

You can set to prevent condensation inside and keep inside air pleasant using this feature.

  • •  Auto dehumidify: Once the inside air circulation mode has been used for a long time, it is switched to the outside air inflow mode to prevent condensation.

Defog/Defrost options (if equipped)

You can set to enable the defogger to secure driver visibility.

  • •  Defog/Defrost: When the sensor detects humidity on the windshield and glasses, it enables the outside air inflow mode and air conditioner for defogging and defrosting.
  • •  Auto defog: When the sensor detects fog on the windshield, the automatic ventilation is run for defogging.

Climate features (if equipped)

You can set or change the settings for the climate system.

  • •  Lock rear climate controls: Prevents changes to the climate control system from rear seats.
  • •  Rear climate control: Used to move to the climate control screen for the rear seat. You can check or set the climate status for the rear seat (if equipped).
  • •  Eco mode climate control: Decrease the cooling/heating level to increase the drivable range.

Warmer/Vent. features (if equipped)

You can set to make the driving environment pleasant by controlling the steering wheel warmer and driver's seat warmer/ventilation.

  • •  Link to climate settings for auto-adjustment: Automatically controls the heating wire or ventilation for the driver's seat and steering wheel, in sync with the climate control function.
    • Steering wheel warmer: Steering Wheel Warmer adjusts automatically based on Climate settings.
    • Driver seat warmer/ventilation: Seat Warmer/Ventilation adjusts automatically based on Climate settings.

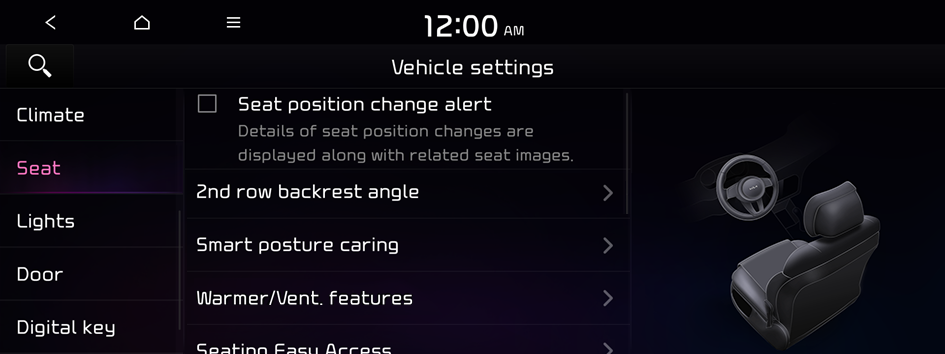

You can set to use various features (motions and warmer control for the driver's seat, rear seat, and steering wheel) that are related to the seats and steering wheel.

  • The screen may differ depending on the vehicle model and specifications.

Seat position change alert (if equipped)

You can set the system to display a notification message along with the seat image on the screen when a seat position is changed.

2nd row backrest angle (if equipped)

Adjust the second-row seat back angle.

Smart posture caring (if equipped)

You can see the recommended driving posture according to your physical data, and the clinical inspection result for your waist.

Warmer/Vent. features (if equipped)

You can set to make the driving environment pleasant by controlling the steering wheel warmer and driver's seat warmer/ventilation.

  • •  Link to climate settings for auto-adjustment: Automatically controls the heating wire or ventilation for the driver's seat and steering wheel, in sync with the climate control function.
    • Steering wheel warmer: Steering Wheel Warmer adjusts automatically based on Climate settings.
    • Driver seat warmer/ventilation: Seat Warmer/Ventilation adjusts automatically based on Climate settings.

Seat Easy Access (if equipped)

For convenience upon getting on and off, you can adjust the position of the driver's seat or steering wheel to secure space inside the vehicle.

  • •  Easy seat (fwd/bwd) access: Can set the distance to automatically move the driver's seat when getting on or off.
  • •  Easy seat (up/down) access: Can set to automatically move the driver's seat when getting on or off.
  • •  Steering easy access: The steering wheel moves upward when getting on and off.

Ergo motion seat (if equipped)

Reduces occupant fatigue and improves ride comfort and safety while driving by ergonomically using seat movements.

Lumbar Stabilisation System while driving (if equipped)

Adjust the seat position to protect your back and ease your back pain while driving.

Rear seat heating control (if equipped)

You can set to enable the warmer for the rear-left and rear-right seats.

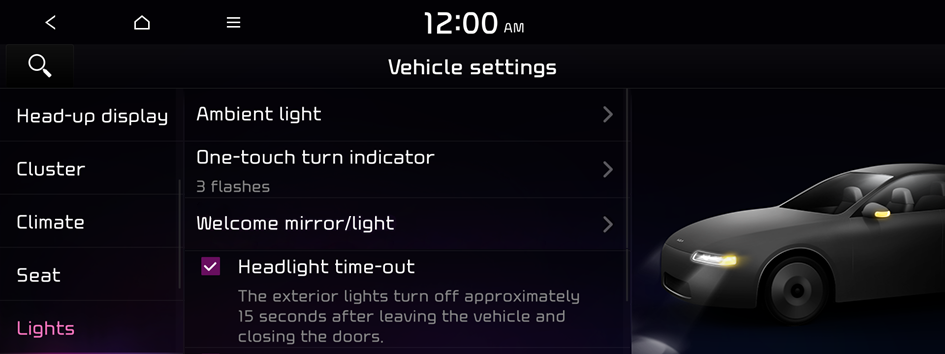

You can configure the settings for vehicle lights.

Ambient light (if equipped)

You can set the brightness and colour of the ambient light.

  • •  Dimmed in dark: This mode automatically decreases the interior mood lamp brightness when the gear is shifted to a position other than "P" (park) at night.
  • •  Link to drive mode (If equipped): Ambient light colour changes according to the drive mode.

One-touch turn indicator (if equipped)

You can set the number of turn signal lamp flashes when the lamp lever is operated.

Welcome mirror/light (if equipped)

You can set the welcoming time on the outside rear view mirrors.

  • •  On door unlock: The welcome feature is enabled by the door unlock event.
  • •  On driver approach: When the driver with the smart key approaches, the welcome feature is enabled.

Headlight time-out (if equipped)

You can set to turn off the taillights and headlights in 15 seconds after turning off the vehicle to ensure visibility.

Travel mode (if equipped)

Prevents blinding oncoming traffic by decreasing the headlamp illumination range. This option is applicable in countries where traffic can move in opposite directions.

HBA (High Beam Assist) (if equipped)

You can set to automatically control the high beam when an oncoming vehicle is approaching to decrease the high beam glare.

Interior lights On (if equipped)

Illumination of the interior buttons and switches at all times.

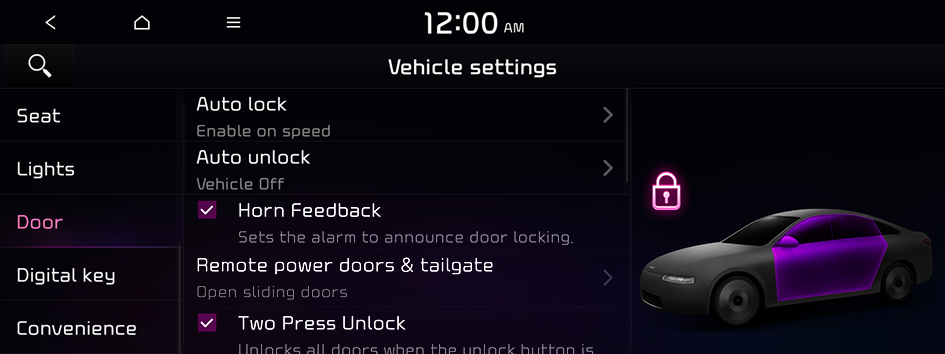

You can configure the operation environment for the trunk and doors.

Auto lock (if equipped)

You can set the time to automatically lock all doors.

Auto unlock (if equipped)

You can set the time to automatically unlock all doors.

Horn Feedback (if equipped)

You can set to generate guiding beep when all doors are locked.

Remote power doors & tailgate (if equipped)

Easily open the doors by pressing the unlock button on the smart key for more than 3 seconds.

Two Press Unlock (if equipped)

You can set to unlock all doors by pressing the door unlock button twice.

  • When you press the door unlock button once, only the driver's seat door is unlocked.

Smart sliding door (if equipped)

Set the sliding door to automatically open when you move close to the sliding door carrying your smart key.

Power trunk or Power tailgate (if equipped)

Open or close the trunk automatically using the power trunk button.

  • The displayed name may differ depending on the vehicle model and specifications.

Power trunk opening speed or Power tailgate opening speed (if equipped)

Set the opening speed for the power trunk (tailgate).

  • The displayed name may differ depending on the vehicle model and specifications.

Power trunk opening height or Power tailgate opening height (if equipped)

Set the opening height for the power trunk (tailgate).

  • The displayed name may differ depending on the vehicle model and specifications.

Smart trunk or Smart tailgate (if equipped)

Opens the trunk (tailgate) automatically when approaching the trunk (tailgate) with the smart key.

  • The displayed name may differ depending on the vehicle model and specifications.

Tailgate auto close (if equipped)

Set the tailgate to automatically close when you move away from the back of the tailgate while carrying the smart key.

  • The displayed name may differ depending on the vehicle model and specifications.

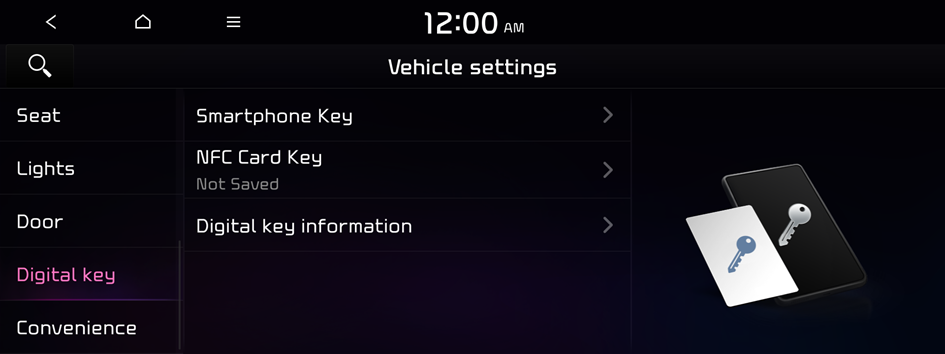

You can register or delete a digital key and then see the information of the registered digital key.

Smartphone Key (if equipped)

You can register or delete a smartphone key.

NFC Card Key (if equipped)

You can register or delete a card key.

Digital key information (if equipped)

You can see the serial number of the registered digital key.

Enable digital keys (if equipped)

You can set whether or not to use the digital keys.

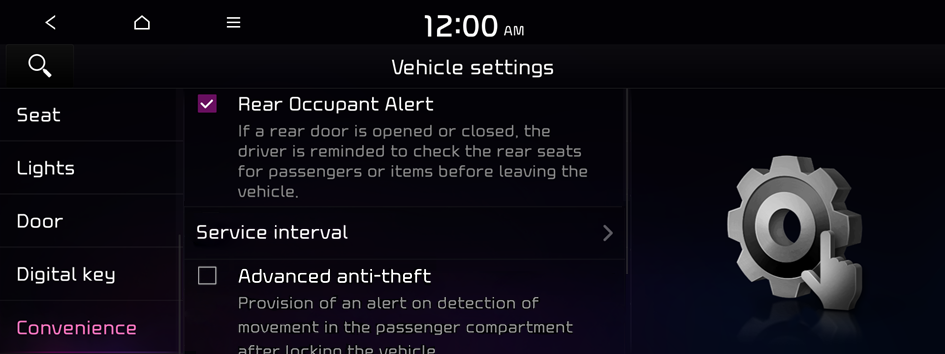

You can configure the features for convenience such as welcome sound and wireless charging.

Rear Occupant Alert (if equipped)

Movement is detected by the rear-seat sensor after the doors are locked.

Service interval (if equipped)

You can set to guide you when to perform the vehicle inspection.

  • •  Enable service interval: Sets the service inspection interval. When it exceeds, the notification is provided.
  • •  Distance: Sets the driving distance for a service.
  • •  Duration: Sets the service cycle.
  • •  Default: Initialises the settings for distance and duration.

Advanced anti-theft (if equipped)

You can set to display an alert when any motion is detected inside the vehicle with the vehicle locked.

Wireless charging system for mobile devices (if equipped)

You can set to charge your smartphone wirelessly.

  • This feature is available only in smartphones that can be charged wirelessly.

Auto rear wiper (reverse) (if equipped)

Activates the rear windshield wiper automatically when the front wiper is On and the gear is in reverse.

Tow mode (if equipped)

Set the trailer weight to refer to when entering tow mode.

Trailer mode (if equipped)

Maintain driving performance and estimate the drivable range when a trailer is connected.
