Configuring the button settings

You can configure the settings for notification and button actions.

• Available settings may differ depending on the vehicle model and specifications.

1. On the All menus screen, press Settings ▶ Button.

   The button settings screen appears.



   Type1



   Type2

   • The screen may differ depending on the vehicle model and specifications.
   • If the vehicle is type 2, it is possible to change the graphic theme to white or black. ▶ See "Graphic themes (if equipped)."
2. Configure the settings required:

• Press ▶ Search for settings or press and enter a keyword to search for a setting item.

Custom button ☆ (Navigation) (if equipped)

You can set the frequently used functions by pressing the custom button on the control panel. Set the frequently used functions as custom buttons to access them easily.

• This option can only be configured when the vehicle model supports navigation.
• The screen may differ depending on the vehicle model and specifications.

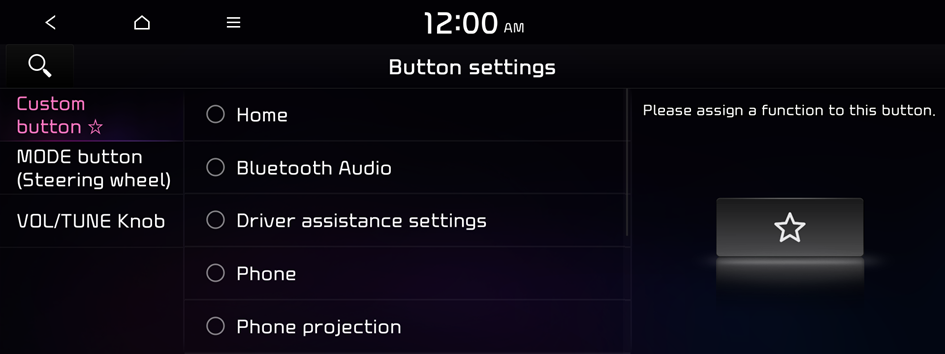

Custom button ☆ (if equipped)

You can set the frequently used functions by pressing the custom button on the control panel. Set the frequently used functions as custom buttons to access them easily.

• The screen may differ depending on the vehicle model and specifications.

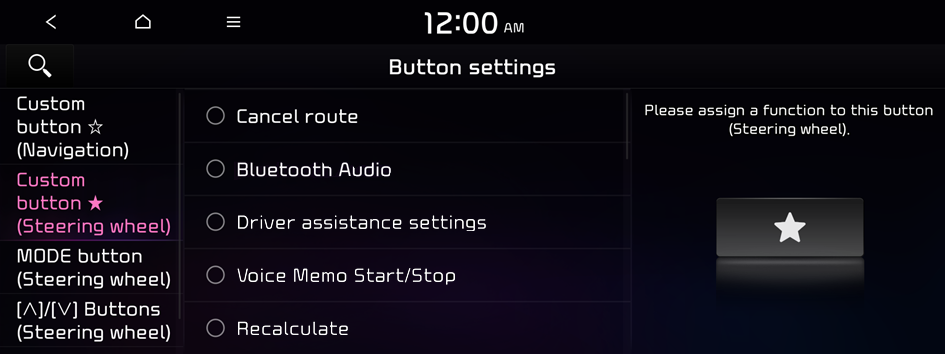

Custom button ★ (Steering wheel) (if equipped)

Specify the functions that can be activated by pressing the user button on the steering wheel. Set the frequently used functions as custom buttons to access them easily.

• The screen may differ depending on the vehicle model and specifications.

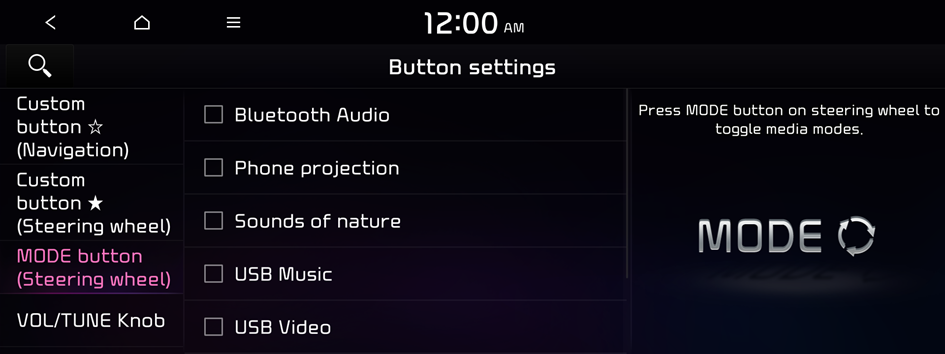

MODE button (Steering wheel) (if equipped)

You can select the media mode to run when the [MODE] button on the steering wheel is pressed.

• The screen may differ depending on the vehicle model and specifications.

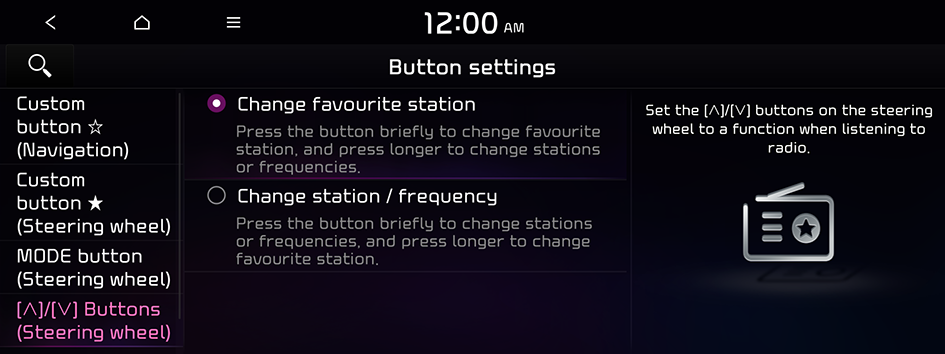

[∧]/[∨] Buttons (Steering wheel) (if equipped)

You can select the function to run when a specific button on the steering wheel is pressed while listening to the radio.

• The screen may differ depending on the vehicle model and specifications.

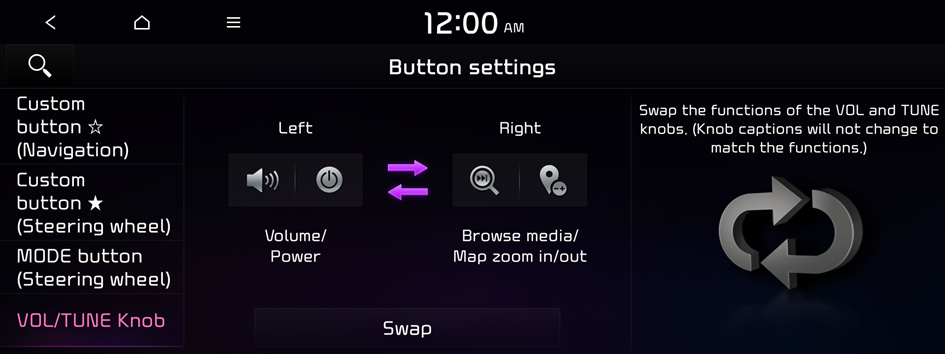

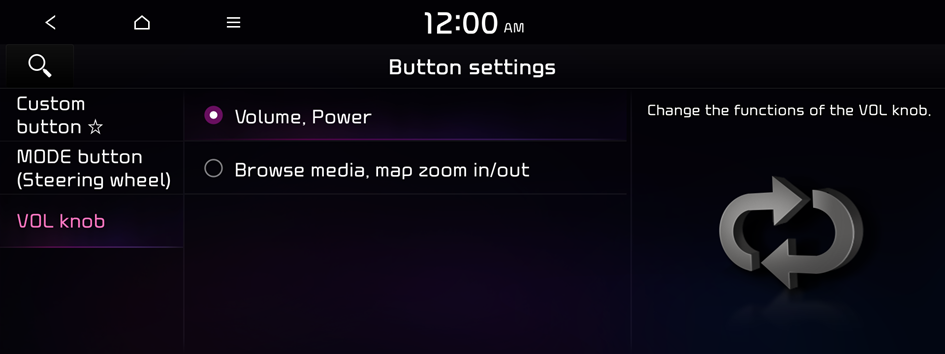

VOL/TUNE Knob (if equipped)

You can switch the functions of the Volume and Tune knobs.

Option A

Option B

• The screen may differ depending on the vehicle model and specifications.

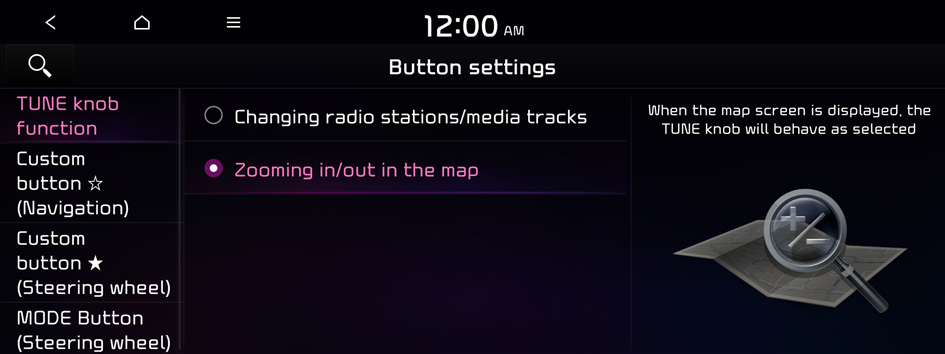

TUNE knob function (if equipped)

You can change the Search knob’s function on the map.

• The screen may differ depending on the vehicle model and specifications.

Changing radio stations/media tracks

You can search music or adjust the radio frequency by using the Search knob on the map.

Zooming in/out in the map

You can zoom in or out the map by using the Search knob on the map.

Configuring the device connections settings

You can manage Bluetooth devices or configure their operation settings. You can also activate the phone projection so that you can control the smartphone Apps on the system screen after connecting the smartphone to the system.

• Available settings may differ depending on the vehicle model and specifications.

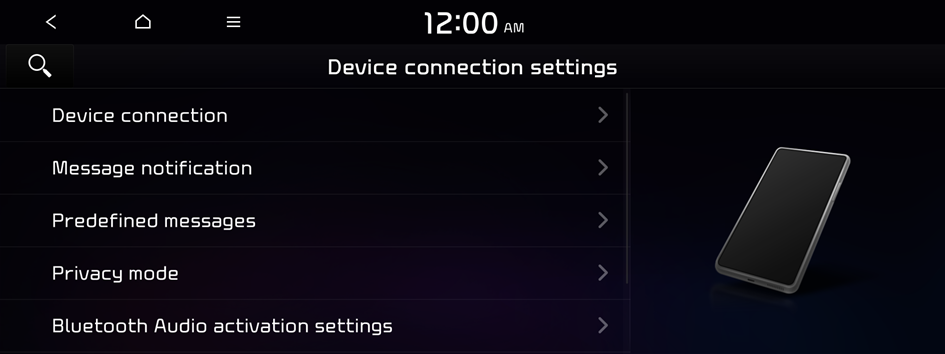

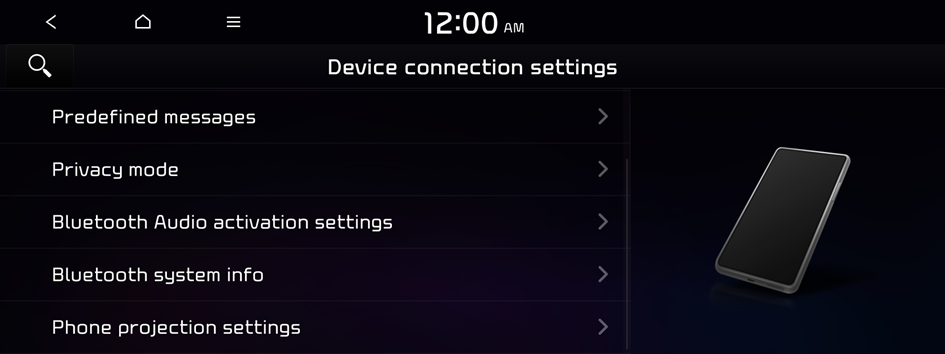

1. On the All menus screen, press Settings ▶ Device connection.

   The device connection settings screen appears.



   Type1



   Type2

   • The screen may differ depending on the vehicle model and specifications.
   • If the vehicle is type 2, it is possible to change the graphic theme to white or black. ▶ See "Graphic themes (if equipped)."
2. Configure the settings required:

• Press ▶ Search for settings or press and enter a keyword to search for a setting item.

Device connection

You can register or delete a Bluetooth device from the system and connect or disconnect a registered device.

• You can add one Bluetooth hands-free kit or up to two Bluetooth audio devices.

Message notification (if equipped)

Sets to receive message notifications.

Predefined messages (if equipped)

Can edit message templates for replies.

• This option may not be available in some phone models.

Privacy mode

Enable or disable Privacy mode. Hide data including contacts and call history from showing up on the system screen to protect privacy.

Bluetooth Audio activation settings

Starts playing Bluetooth Audio when playing media on your phone. You can also play Bluetooth Audio only in the vehicle.

Bluetooth system info

You can see and edit the Bluetooth information of the system.

Phone projection settings

You can activate the phone projection connection function to pair your smartphone with the system.

Android Auto

You can activate the Android Auto function to pair your Android smartphone with the system.

Apple CarPlay

You can activate the Apple CarPlay function to pair your iPhone with the system.

Bluetooth (if equipped)

You can register or delete a Bluetooth device from the system and connect or disconnect a registered device. You can also configure operation settings such as notifications, messages, and other settings for Bluetooth devices.

• The screen may differ depending on the vehicle model and specifications.
• For more information on how to use the Bluetooth functions: ▶  see "Connecting a Bluetooth device."
• Some setting options appear when a smartphone is connected to the system.

Bluetooth connections

You can register or delete a Bluetooth device from the system and connect or disconnect a registered device.

• You can add one Bluetooth hands-free kit or up to two Bluetooth audio devices.

Auto connection priority

Set the priority order for automatic Bluetooth connection to the system when it turns on.

• On the device list, press on the right and drag the item to reposition.

Message notification (if equipped)

Sets to receive message notifications.

Predefined messages (if equipped)

Can edit message templates for replies.

• This option may not be available in some phone models.

Privacy mode

Enable or disable Privacy mode. Hide data including contacts and call history from showing up on the system screen to protect privacy.

Bluetooth system info

You can see and edit the Bluetooth information of the system.

Reset (if equipped)

You can delete all registered Bluetooth devices and initialise Bluetooth settings. All data for Bluetooth devices are also deleted.

Configuring the sound settings

You can change the sound settings such as speaker volume and sound effects.

• Available settings may differ depending on the vehicle model and specifications.
• Some functions may not be available depending on the infotainment system and amplifier specifications on the vehicle.

1. On the All menus screen, press Settings ▶ Sound.

   The sound settings screen appears.



   Type1



   Type2

   • The screen may differ depending on the vehicle model and specifications.
   • If the vehicle is type 2, it is possible to change the graphic theme to white or black. ▶ See "Graphic themes (if equipped)."
2. Configure the settings required:

• Press ▶ Search for settings or press and enter a keyword to search for a setting item.

Premium sound (if equipped)

You can change the system sound settings and apply various sound effects.

• Available sound effects may differ depending on the specifications of the amplifier.
• The screen may differ depending on the vehicle model and specifications.

Speed dependent volume control

Automatically adjusts Audio volume according to vehicle speed.

Volume limitation on start-up

You can set to automatically decrease the audio volume to an adequate level when turning on the vehicle.

Adjusting the sound effect (if equipped)

Press the sound effect button on the radio/media screen to adjust.

• Phone projection is linked with the BT sound effect settings.
• Sound effect can be set separately for each radio/media mode.
• This function is not provided in the sound settings.

Centerpoint (if equipped)

BOSE's surround technology that upmixes stereo sources to deliver a vivid, immersive listening experience. Centerpoint delivers a more immersive soundstage as if you were in the centre of the stage from every seat by properly positioning each instrument inside the vehicle with precise sound movement.

Centerpoint

Meridian Horizon (if equipped)

It is a technology that converts a stereo source and provides a sense of presence and immersive so that make you feel a part of the performance. It provides three sound effects modes by reconstructing characteristics through each extracted source.

• •  Authentic: A sound stage unfolds in front of the vehicle with a clear vocal image.
• •  Surround: Delivers immersive sound that fills the entire vehicle space.
• •  Custom: Customise the position of the vocal image and the level of immersion.

Stage

Surround

Custom

QuantumLogic Surround (if equipped)

Delivers various sound effects by classifying the location of each instrument in the recorded sound source.

• •  Reference: Delivers true sound focusing on original sound source.
• •  Audience: Delivers an intimate concert experience where the boundaries of the vehicle seemingly disappear which feels like you are in the audience at a concert.
• •  On stage: Delivers a surround-sound experience that puts listeners onstage with their favourite artists, placing individual instruments and musical elements throughout the cabin.

• Vehicles with QuantumLogic Surround level 2 only provide ON/OFF function.

Reference

Audience

On stage

Live Dynamic (if equipped)

By reconstructing the dynamic information of compressed digital audio, it provides various sound effects. It provides three sound effects modes by reconstructing the separated sound signal according to the amount of dynamic change.

• •  Reference: Delivers true sound focusing on original sound source.
• •  Natural: Delivers natural sound through stereo reconstruction of separated sound signal.
• •  Concert: Delivers a sense of space like a concert scene through multi-channel reconstruction.

• Vehicles with Live Dynamic level 2 only provide ON/OFF function.

Position (if equipped)

You can select a position where sound is more audible in the vehicle. By pressing the desired point on the seat image or pressing the arrow buttons, you can finely adjust the position. To concentrate the sound to the centre of the vehicle, press .

Equaliser

You can adjust the sound by adjusting the strengths (output levels) for each audio band: Bass, Midrange and Treble.

• To reset all audio settings to the default values, press Centre.

Guidance

Specify the system's guidance voice type, set a certain sound to override other sounds, and configure other guidance sound settings.

• The screen may differ depending on the vehicle model and specifications.

Guidance volumes

You can adjust the volume levels for individual system features or initialise all volume settings.

• To initialise all system sound settings, press Default.

Audible charging info (if equipped)

Audible information about the charging status when the vehicle starts charging.

• To turn off the Audible charging info, press Off.

Navigation alert (if equipped)

You can set to activate drive assist features when needed for safety.

• This option can only be configured when the vehicle model supports navigation.

Navigation during phone calls (if equipped)

Even during a call, the navigation sound is heard.

• This option can only be configured when the vehicle model supports navigation.

Navigation prioritised (if equipped)

You can set to enable the navigation sound to be heard first when using both the navigation system and Radio/Media system.

• This option can only be configured when the vehicle model supports navigation.

Mute navigation guidance (if equipped)

Press the Mute button on the steering wheel when the navigation guidance is being output to set to mute the guidance volume for 10 seconds.

• This option can only be configured when the vehicle model supports navigation.

Radio noise control

You can customise sound quality when listening to FM radio by adjusting background noise of the original sound.

Driver assistance

You can set to give priority to the proximity warning feature and lower all other sounds when parking your vehicle.

Parking safety priority

When warning sound is generated while parking, the audio volume decreases to make the sound audible.

Connected devices

You can adjust the volume of the phone projection and initialise all volume settings.

Android Auto

Vary the volume of your Android smartphone, connected to the system, depending on the function.

• To initialise all system sound settings of the phone projection, press Default.
• The sound effect settings button may appear on the screen depending on the amp specifications. ▶ See "Adjusting the sound effect (if equipped)."

Apple CarPlay

Vary the volume of your iPhone, connected to the system, depending on the function.

• To initialise all system sound settings of the phone projection, press Default.
• The sound effect settings button may appear on the screen depending on the amp specifications. ▶ See "Adjusting the sound effect (if equipped)."

Turning on/off the screen touch sound

To turn on or off the touch sound on the screen, press Beep at the top of the screen.
