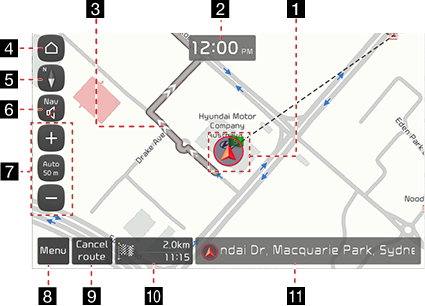

Map screen
|
|
|
|
1 Vehicle position mark
Displays current vehicle position mark and direction.
2 Clock display
Displays current time.
3 Route guidance lane
Displays the route guidance lane to the destination when a route is set.
4 [
] button
Press [
] to move to the HOME screen.
5 Map display
Changes the map view perspective. Press [
], [
] or [
].
-
(Heading up (2D)): The map displays always showing the vehicle’s direction as proceeding towards the top of the screen. -
(North up (2D)): The map displays always pointing north, regardless of the direction of the vehicle is moving. -
(3D map) : The map displays always the basic outline and details of the surrounding roads and general area.
6 Navigation volume
Sets the navigation voice guidance volume.
7 Map scale
[
]/[
]
- Displays the current map scale.
- Sets the zoom level automatically to the guidance. Press the button to toggle the selection of auto scale on or off.
[
]/[
]
- Press [
] or [
] repeatedly to set the zoom level on the map screen.
8 [Menu] button
Shows the quick menu screen of navigation.
9 [Cancel route]/[Resume guidance] button
- Cancels or resumes the route guidance to the destination.
- Press and hold [Cancel route] on the map screen to stop the currently set destination. Once your route has stopped, press [Resume guidance] to resume the route guidance.
10 Remaining distance display/Remaining time display
Displays the distance and time of arrival to the destination or tourpoint.
Press to toggle between travel time and remaining time.
11 Current location and destination display
Displays the current location and the destination.

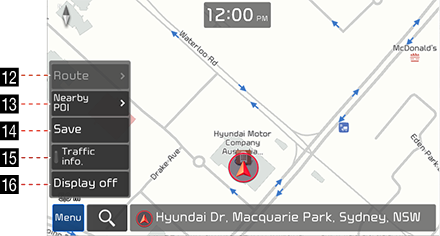

12 [Route] button
Changes the route conditions when a route is set.
13 [Nearby POI] button
Finds a POI (Point Of Interest) near the current position, destination or route.
14 [Save] button
Adds frequently used address to [Saved places] menu.
15 [Traffic information] button
Sets whether to display traffic information.
16 [Display off] button
Press to turn the screen off.
