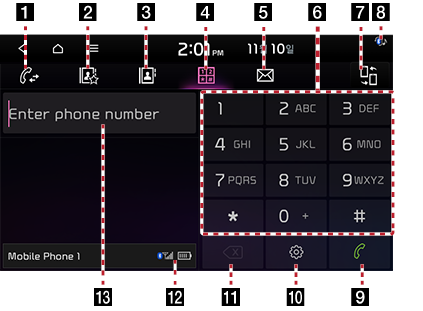

Dial Screen
Press [
] on the phone screen.
|
|
1
(Recent Calls)
Moves to Recent Calls Screen.
2
(Favorites)
Moves to Favorites Screen.
3
(Contacts)
Moves to Contacts Screen.
4
(Phone Screen)
Moves to Bluetooth Phone Dial Pad Screen.
5
(Message)
Moves to Message Screen.
6 Dial Pad
Enter the phone number to call. The entered number is displayed on the number entrance window.
7
(Change device)
Displays the change device on the pop-up.
8
(Bluetooth Connection Icon)
Shows the connection status between Bluetooth Phone and the head unit.
When the phone is connected and the phone call is made, Bluetooth Icon (
) switches to Handset Icon (
).
9
(Call)
If there is a registered phone no., the call is connected. If there is no registered phone no., the most recent call number is entered.
10
(Setting)
Moves to Bluetooth Setting Screen.
11
(Delete)
Deletes the entered phone no.
12
(Reception level icon)
The reception level (sensitivity) of the calling area is specified in the bar graph.
(Mobile battery icon)
Specifies the remaining battery of mobile phone.
13 Number Entrance Window
Opens Phone Number Entrance Window.
|
,Note |
|
