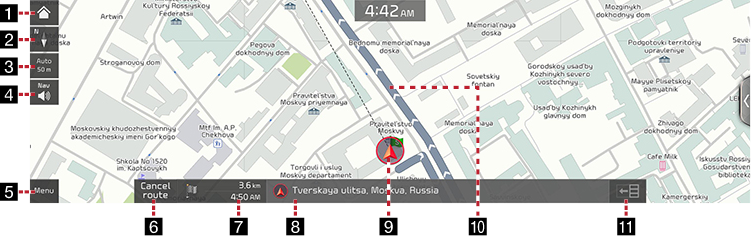

Map screen

1 Home screen

Moves to the home screen.

2 Map view

Sets the view mode of navigation map.

3 Map scale display

Switches to a desired scale.

4 Navigation volume

Sets the volume of voice guidance of navigation.

5 Menu

Opens the pop-up menu.

6 Cancel route/Resume guidance

• Cancels or resumes the route guidance to the currently set destination.
• Press and hold [Cancel route] on the map screen to stop the guidance.

7 Information to the destination

Displays the remaining distance, the required time and the estimated time to arrive the destination.

8 Current location and destination name display

Displays the current location and the destination name.

9 Vehicle position mark

Shows the current vehicle position and the direction of vehicle movement.

10Route display

A route from the current vehicle position to the set current destination is displayed.

11TBT (Turn By Turn)

Turns the TBT (Turn By Turn) on/off.

• Displays distance and direction information for the upcoming TBT (Turn By Turn) when the route is activated.
• Displays compass screen when the route is deactivated.
