Button/Touch Pad settings

The images displayed on this system may differ from actual ones.

Move to Button/Touch Pad Settings screen

You can set button/touch pad Settings Items.

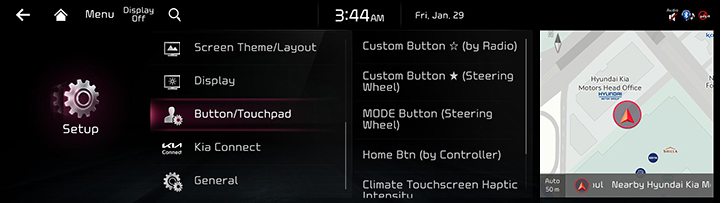

Press [Setup] > [Button/Touch Pad] on the home screen. Button/touch pad settings screen is displayed.

Custom Button K (by Radio)/L (Steering Wheel)

You can set the function you want to execute with the user button.

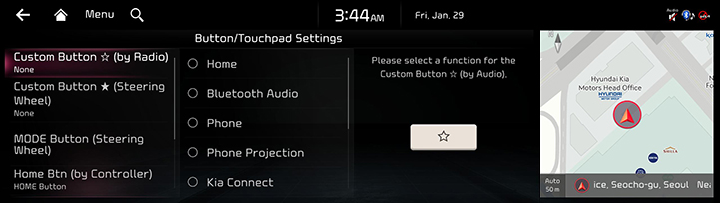

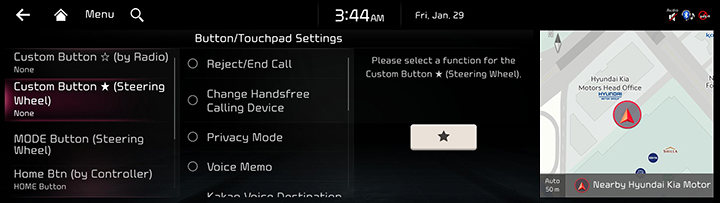

1. On the button/touch pad settings screen, press [Custom Button K (by Radio)/L (Steering Wheel)].

2. Press the desired item.

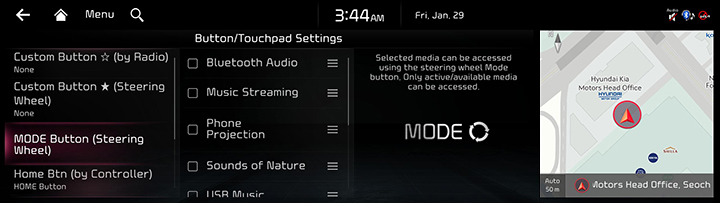

MODE Button (Steering Wheel)

The selected media can be accessed by pressing the steering wheel mode button. Only active/available media can be accessed.

1. On the button/touch pad settings screen, press [MODE Button (Steering Wheel)].

2. Press a desired mode.

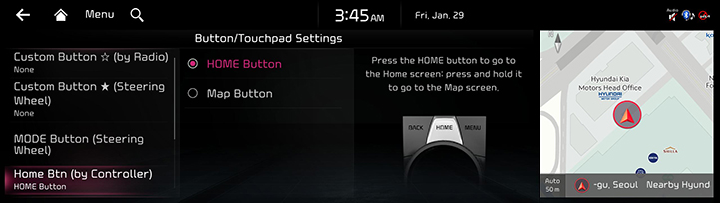

HOME button (by Controller)

Sets the function to be activated when the Home button is pressed briefly.

1. On the button/touch pad Setting screen, press the [HOME button (by Controller)].

2. Press a desired item.

• [HOME Button]: Shortly press the home button to go to the home screen.
• [MAP Button]: Shortly press the home button to go to the map screen.

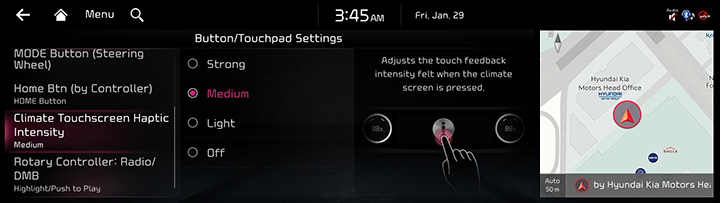

Climate Touchscreen Haptic Intensity

Adjusts the touch feedback intensity felt when the climate screeb is pressed.

1. On the button/touch pad settings screen, press the [Climate Touchscreen Haptic Intensity].

2. Press a desired item.

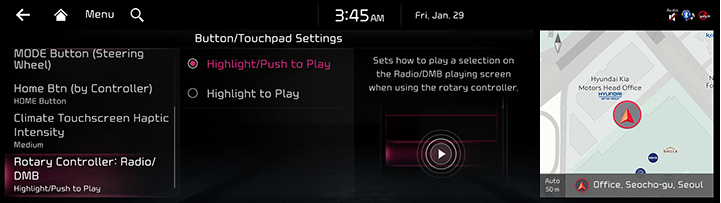

Rotary Controller: Radio/DMB

Sets how to play a selection on the Radio/DMB playing screen when using rotary controller.

1. On the button/touch pad settings screen, press the [Rotary Controller: Radio/DMB].

2. Press a desired item.
