Climate
The images may differ from the actual components.

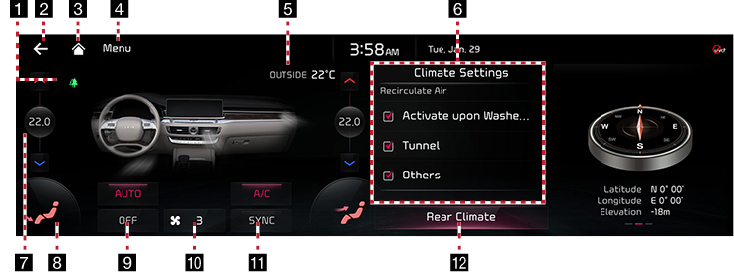

Operating Climate
Press [Climate] on the home screen.
|
|
1 Air Clean Mode
The color is changed according to the air quality and condition inside the vehicle.
2 a
Moves to the home screen or the previous screen.
3
Moves to the home screen.
4 Menu
Shows climate menu.
5 Outside Temperature
It displays the current temperature outside the vehicle.
6 Climate settings
Sets the climate options.
7 Front Seat Set Temperature
It sets the set temperature of the front seat
8 Blower Position
Changes the seat blower position to up/down.
9 AUTO
The air cooling and heating are automatically activated according to the set temperature.
OFF
Turn off the climate function.
10Blower Level
It displays the set blower level.
11 A/C
When the A/C is active, air conditioner is operated for vehicle cooling.
SYNC
When the SYNC is active, passenger seat and driver seat are synchronized.
12 Rear Climate
It sets the air conditioning temperature and air volume operating in the rear seats.

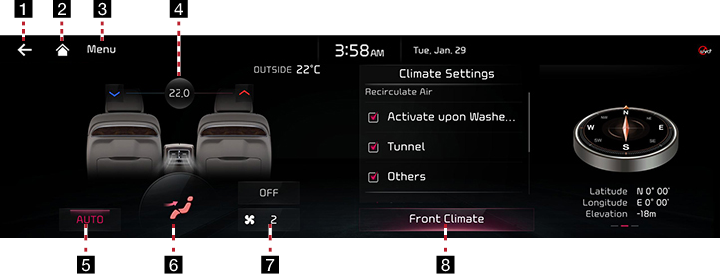

Controlling Rear Seat Climate
Powers on or off of the climate device of rear seat.
Press [Rear Climate] on the climate screen.
|
|
1 a
Moves to the home screen or the previous screen.
2
Moves to the home screen.
3 Menu
Shows climate menu.
4 Rear Seat Set Temperature
It sets the set temperature of the rear seat.
5 AUTO
The air cooling and heating are automatically activated according to the set temperature.
6 Blower Position
Changes the seat blower position to up/down.
7 Blower Level
It displays the set blower level.
8 Front Climate
It sets the air conditioning temperature and air volume operating in the front seats.

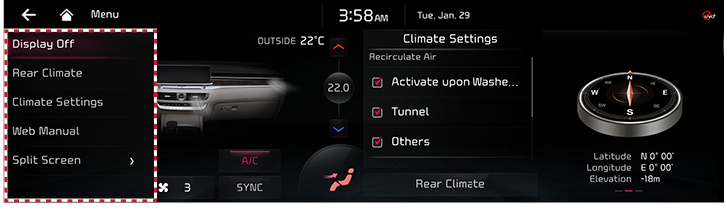

Climate Menu
Press [Menu] on the climate screen.
|
|
Display Off
Turns off the screen.
Front Climate/Rear Climate
It sets the air conditioning temperature and air volume operating in the front/rear seats.
Climate Settings
Moves to the climate settings screen.
Web Manual
Displays the QR code for the manual of corresponding function.
Split Screen
Displays split screen selection menu.
