Voice Recognition System

What is voice recognition?

Voice recognition technology runs the system as ordered by recognizing your voice command to help with the operation of multimedia while you are driving the car. Not all possible voice commands are recognized by the system due to technological limitations. To make up for these limitations, the system displays the voice commands that are available for you to use.

There are errors in communication between people. Likewise, voice recognition sometimes misunderstands your voice command under certain circumstances. If this happens, either check the screen for the available options and say the command again, or manually select and press the button for the corresponding command on the screen.

Voice recognition features by language

Voice recognition support availability varies according to the language set for the system.

Please verify the current language setting before using the voice recognition.

• If you change the language set for the system to Korean, voice recognition will not be supported. Change the system language to other language.

Operating voice command

Condition for voice command system

Most of the functions can be operated by voice. Please follow the instructions below for optimal voice recognition performance.

• To improve the voice recognition performance, keep your car interior quiet by closing all windows and the sunroof.
• Press the voice recognition button and say the desired voice command after the beep sound.
• The microphone is positioned above the driver. Voice commands should be spoken by driver practicing proper posture.
• Pronounce the voice commands naturally and clearly as if in a normal conversation.
• Special symbols of Phonebook Name are not considered in voice recognition.
  Ex) James-Smith : “James Smith”
• House number or digits in Phonebook Name should be spoken discretely.
  Ex) S1234 : “South one two three four”
• Depending on the specifications, some commands may not be supported.

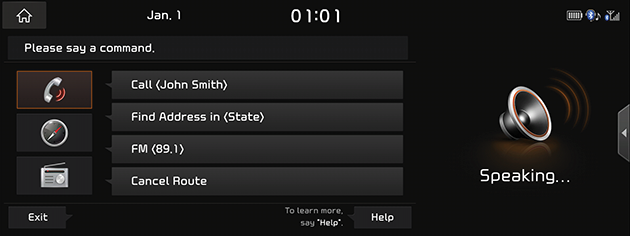

Starting voice recognition

1. Press the [] button on the steering wheel remote control.
2. Say the desired voice command after the beep sound.

,Note

For proper recognition, please say the command after the voice instruction and beep sound. When starting voice recognition, the voice command entry window with 4 representative commands is displayed. If voice recognition is in [Beginner], then the system will provide the detailed voice recognition guidance. If voice recognition is in [Normal], then the system will provide the simple version of voice recognition guidance. If voice recognition is in [Expert], then the system will not provide any prompts. Only a beep will be played.

Skipping prompt messages

While a prompt is playing, press the [] button on the steering wheel remote control quickly. The prompt is immediately ended and a beep will sound. Please say the voice command.

Re-starting voice recognition

While the system waits for input, press the [] button on the steering wheel remote control quickly. The beep tone will sound, indicating the system is listening for a new input. Say a voice command.

Ending voice recognition

• While voice recognition is operating, press and hold the [] button on the steering wheel remote control, or say ‘Exit’.
• While using voice recognition, pressing other button except on the steering wheel remote control or a different button on head unit will end voice recognition.

Adjusting voice recognition volume

While voice recognition is operating, turn [VOL] knob on the head unit or press [+/-] button on the steering wheel remote control.

Basic operation for voice command (Setting FM)

1. Press the [] button on the steering wheel remote control. The system waits for your command and displays a list of available commands on the screen.

2. After the beep, Say ‘FM’.

Voice recognition quick start (Manual Control)

The usual way of activating voice recognition is waiting for the voice guide and then speaking your command for a task. Since this method requires that you wait a while for the voice guide, you can select one of the commands shown on the screen to speed up the process.

You might find this feature useful when you do not want to wait for the full voice guide or when the system does not recognize your voice.

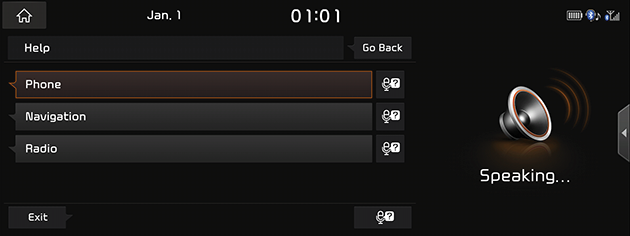

About voice command “Help”

1. Press the [] button on the steering wheel remote control.
2. If you hear a beep sound after voice guidance, say "Help". The available commands are displayed on the screen.

3. Select or say the displayed command on the screen.

Voice command list

Voice recognition commands are classified as “Global Commands” and “Local Commands”.

• Global commands (●) : Commands that can be used immediately after activating voice recognition.
• Local commands (□) : Commands that can be used in specific multimedia/navigation/Bluetooth mode states.

,Note

Some global and local commands will operate properly only when a USB, iPod, Bluetooth or other device has been connected.

Phone commands

• Voice commands related to phone calls can be used after connecting the Bluetooth phone device.
• To call, you must first download the mobile phone contacts. (Up to 5,000 mobile phone contacts can be downloaded.)
• After downloading the Bluetooth phone contacts, it will take some time to convert the phone contacts into voice data during which time you cannot make a call by name yet. The time that it taken to convert voice data may vary depending on the number of contacts downloaded.

Command		Operation
●	Call	Downloaded mobile phone contacts is displayed on the screen, and afterwards, you can make a call by speaking the name.
●	Call <Name>	You can immediately make a call to (name) in the downloaded mobile phone contacts. Ex.) “Call John Smith”
●	Call <Name> on Mobile	You can immediately make a call to (name) in the downloaded mobile phone contacts saved as ‘mobile’. Ex.) “Call John Smith on mobile”
●	Call <Name> at Work	You can immediately make a call to (name) in the downloaded mobile phone contacts saved as ‘office’. Ex.) “Call John Smith at work”
●	Call <Name> at Home	You can immediately make a call to (name) in the downloaded mobile phone contacts saved as ‘home’. Ex.) “Call John Smith at home”
●	Call <Name> on Other	You can immediately make a call to (name) in the downloaded mobile phone contacts saved as another phone category except ‘mobile, home, office’. Ex.) “Call John Smith on other”
●	Dial number	Displays a screen where you can say a phone number to dial.
●	Dial <Phone #>	You can make a call by directly speaking the number you want to call. Ex.) Dial 123-456-7890 : “Dial one two three four five six seven eight nine zero”
●	Change Bluetooth Device	It can disconnect from the Bluetooth device currently connected and connect to other Bluetooth devices already paired.

Radio commands

Command		Operation
●	Radio	Plays last radio station and/or channel (FM, AM or SiriusXM).
●	FM	It runs FM radio.
●	AM	It runs AM radio.
●	SiriusXM™	It runs SiriusXM™ radio.

Navigation commands

Check the following before you use navigation commands :

1. Search for and find addresses located in the state or province your car is currently in. If you want to search in another state, say the name of state/province and then say the address. "Find Address" command is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the destination is fixed.

Command		Operation
●	Find Address in <State>	Finds the address in <State> and sets it as the destination. Ex.) Find Address in California To find an address, you should say “House Number > Street > City” (in order, excluding the state). Ex.) 300 (Three Zero Zero), Main Street, Almond
●	Find <POI Category>	Immediately finds <Category> of POI nearest to your current location. Ex.) Find “Parking”
●	Cancel Route	Cancels the route to the fixed destination and exits guidance.
●	Destination Information	Tells you the remaining distance and time to your destination.
●	Previous Points	Displays a list combining Previous Destinations, and Previous Starting Points all together. You can set a destination by saying the list number.
●	Previous Destinations	Displays a list of recent destinations and you can set a destination by saying the number on the list.
●	Previous Starting Points	Displays a list of recent starting points and you can set a destination by saying the number on the list.
●	Traffic Information	Moves to the Traffic Information menu screen.
●	Go Home	Set your home as the destination. Your home address must be set up in the Navigation System.
●	Change Home	Changes location for Home.
●	Go to Work	Set the destination to your office/place of work. Your office/place of work must be set up in the Navigation System.
●	Change Work	Changes location for Work.
●	Route Options	Restarts the route to your destination. You can select either “Faster Time” or “Shorter Distance”.
●	Show Route	Displays a map overview of the entire route to your destination.
●	Zoom Out	Zooms out from the navigation map to the fullest.
●	Zoom In	Zooms in on the navigation map to the fullest.
●	Resume Route	Resumes the route guidance to the existing destination.
●	Pause Route	Pauses the route guidance.
●	Frequently Visiting Points	Displays a list of frequently visiting points.
●	Turn Guidance On	Turns on the voice guidance system.
●	Turn Guidance Off	Turns off the voice guidance system.
●	Address Book	Displays a list of the address book. You can set a destination by saying number on the list.

Other Commands (Commands used in List/Help/etc.)

Command		Operation
●	Help	Goes to the voice recognition help screen. All available commands can then be identified and used.
□	Yes/No	When voice recognition is active, this command is used when an answer is requested for a confirmation question.
□	Line 1-4 (One-Four)	When you cannot select a certain name, such as in Call History, you can select it using line number. Simple numbers, such as “one” and “two”, can be recognized.
□	Next/Previous	When five or more searched items are listed, you can move to the previous or next page using a voice command.
□	Manual Input	When Dial or Destination search results are displayed, this command is used to search manually rather than searching using a voice command. Voice recognition stops after this command is used.
□	Go Back	Goes back to the previous screen.
●	Exit	Ends the voice recognition.
